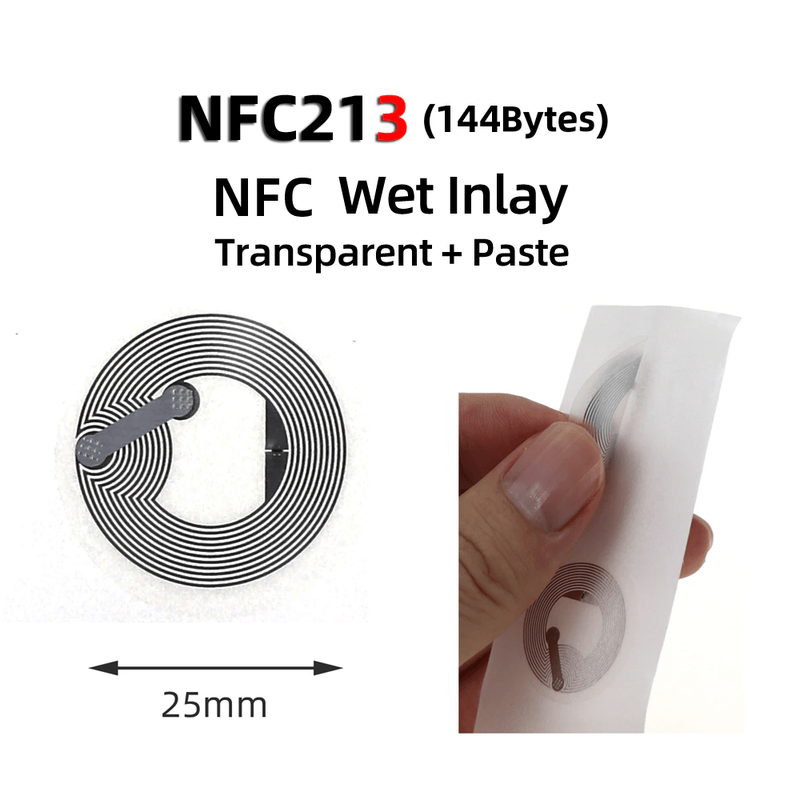

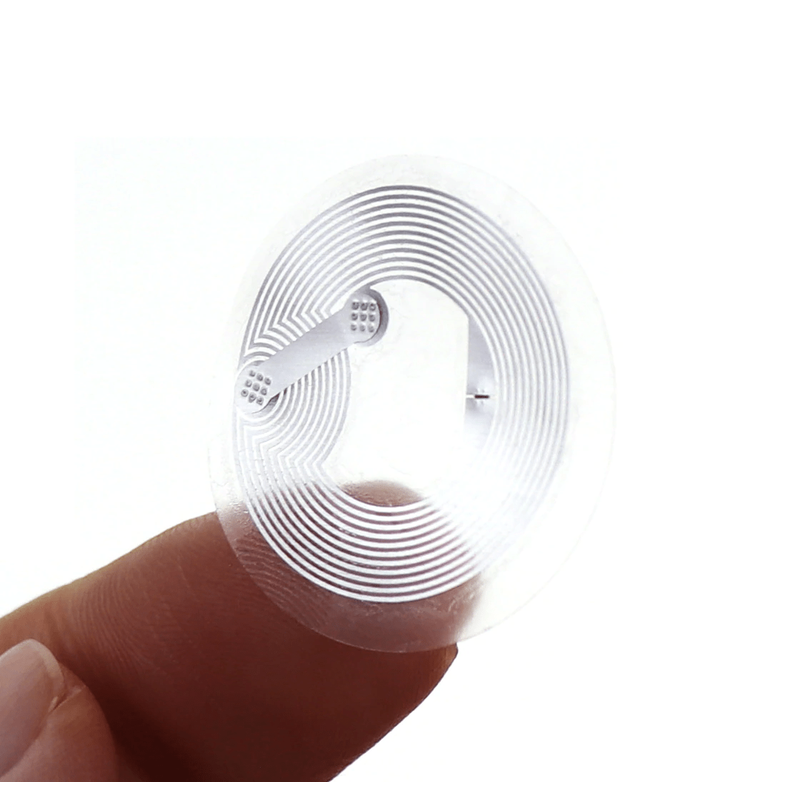

Have a play with these NFC tags which you can program yourself and place anywhere! These are soft adhesive tags. Sold as packs of 10.
The tags are blank with no data, you can program them to launch many things on your phone eg.
navigation
phone calls
open a website
turn on Wi-Fi or Bluetooth
turn on your alarm
put your phone on mute...
Various routine tasks can be stored, which are carried out by holding your device in front of the tag. Can be re-written up to 100,000 times.
Specification:
Chip: Ntag213(144bytes) / Ntag215(504bytes) / Ntag216(888bytes) Protocol: ISO14443A Working frequency: 13.56 MHZ Reading and writing distance: 1 to 5 cm Reading and writing time: 1 to 2 ms Working temperature: -20 to 55 degree, humidity of 90% Erase times : > 100000 times Data storage: > 10 years Reading time: 100000 times Diameter: 25mm
Compatibility: 1) Support 13.56mhz RFID and NFC IC reader/writer, For example: Acr122u reader/writer 2) Support Smart mobile phones with NFC function.
Suitable for Samsung Galaxy S5/S4/Note 3/Note 2/NOKIA Lumia920/820/720/620/BLACKBERRY Z10/Q10/LG Nexus4/Nexus5/HTC one/Sony Xperia, and all NFC enabled mobile phones.
These tags are as pictured, and work well. Note that they all have the same tag id, so you need to rely on the data in the tag, and each needs to be programmed. Here is the programming code: https://forum.arduino.cc/t/writing-to-mifare-ultralight-nfc-tag-using-rc522-module/363199 - look for 'mifare ultralight example (25-02-2018)' on the page.
J
JG
2/10
Found out 2 out of 10 tag were faulty. Paid big bucks for nothing. Oh and you had to pay extra taxes for ur goods, will def get these stuffs from alxpres.. #Lessonlearned
