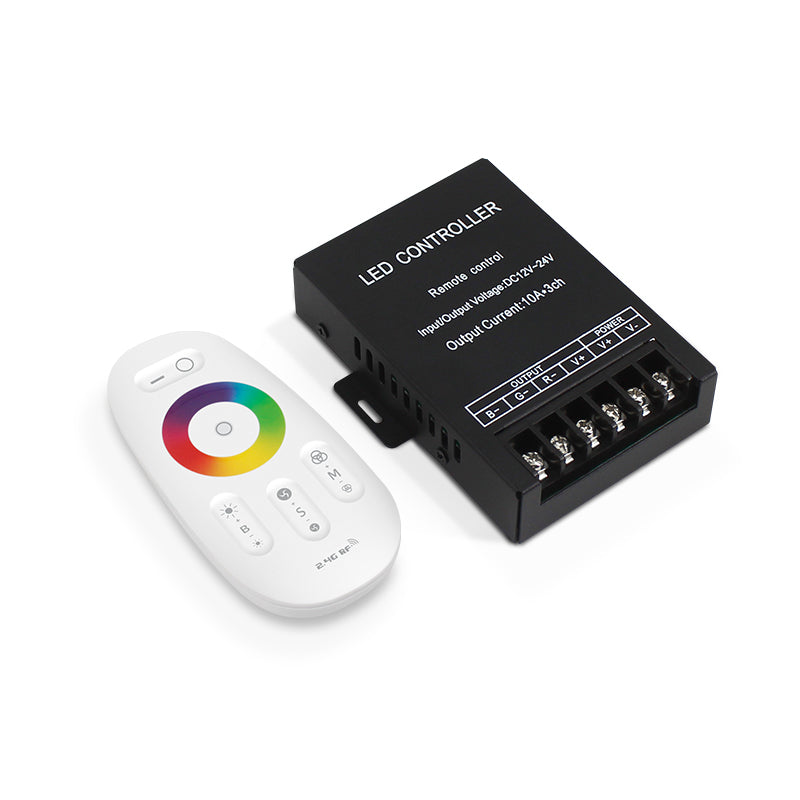

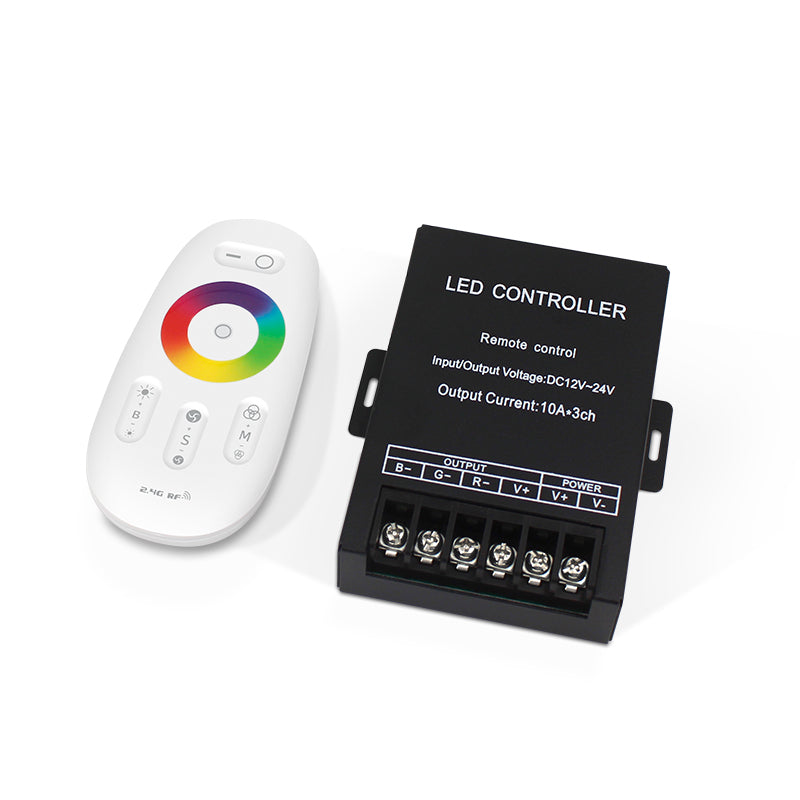

2.4G Full Touch 360W RGB LED Controller
The metalclad touch remote Led controller is an universal type of RGB touch remote controller, which is adopting the most advanced PWM control technology, controlling all RGB LED products with Four lines and three circuits( common anode). It also own 640 thousand colors and 20 automatical changing modes to choose. It is widely used in LED RGB strip light, LED module and so on. Also, It has the memory function(that is to say, the previous settings will be resumed when power on again). With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability, high speed telecommunications, etc. The remote looks fashionable and elegant, with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use.
The controller parameters:
Working temperature: -20-60°C Input voltage: DC5V~24V
Output: 3 circuit
Connection mode: Common anode Controller size: L74×W110×H24mm Net weight: 195g
- Output: 3 circuit
- Connection mode: Common anode Controller size: L74×W110×H24mm Net weight: 195g
- Static power consumption: <1W
- Output current: <10A/ch
- Output power: 5V:<150W, 12V:<360W, 24V:<720W
