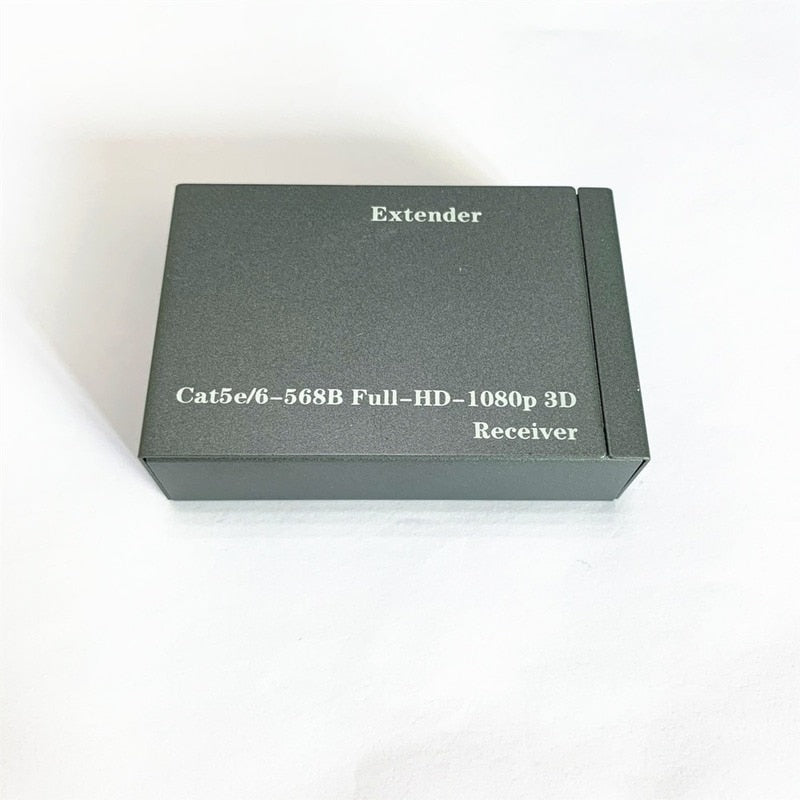

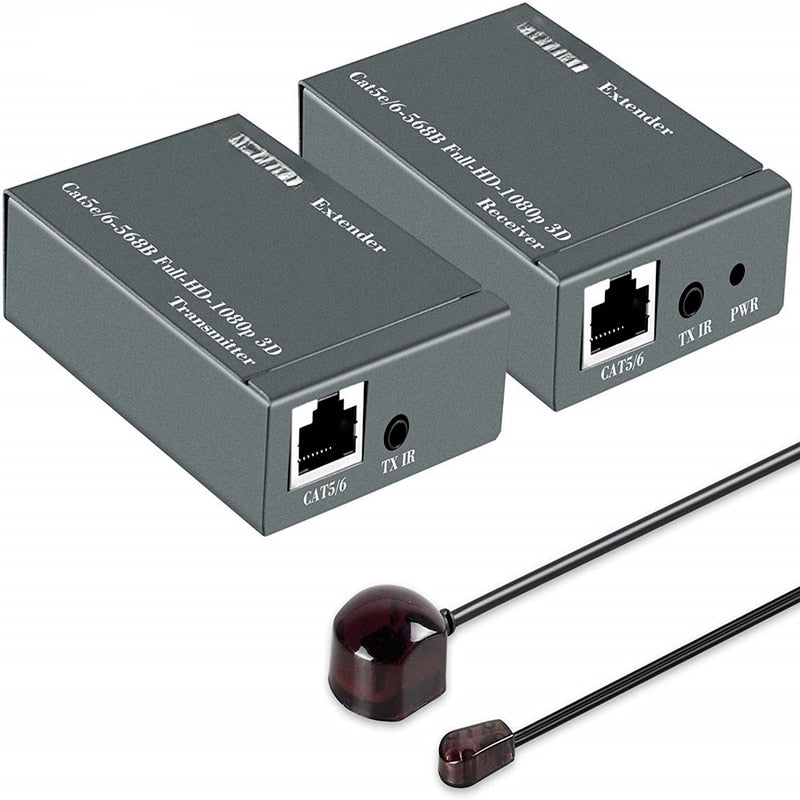

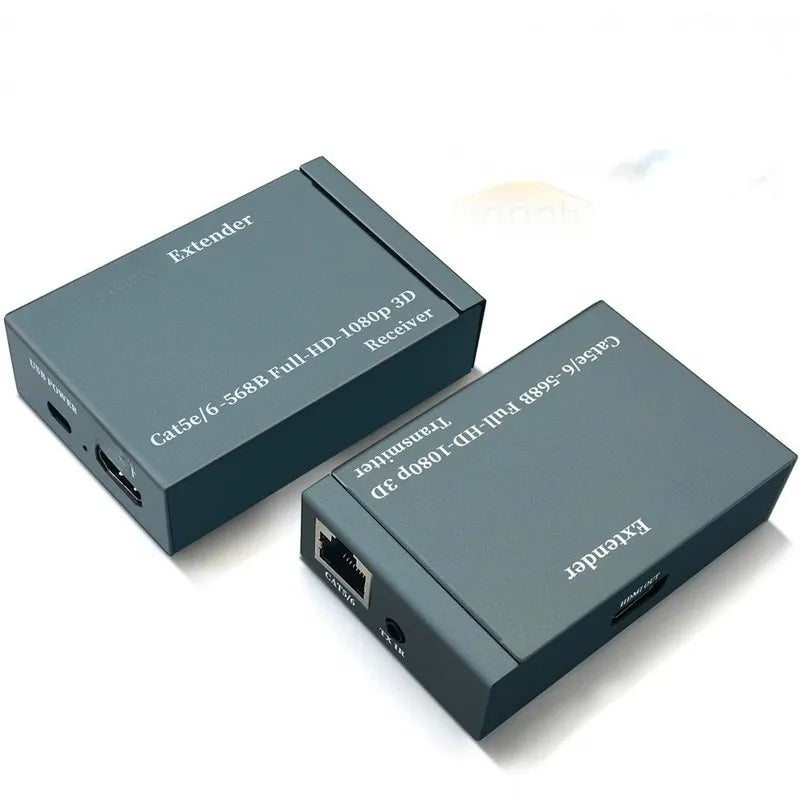

HDMI Extender Repeater Over Cat6 Cat7 Ethernet Cables with IR Function RJ45 Transmitter TX/RX Extender Loop (1080P 60m)

Easy setup, straightforward use, plug and play - this HDMI-compatible single network extender provides support for multi-monitor display with an integrated splitter.

Product Features:

• Support video input and output: 24/50/60fs/4k/1080p/1080i/720p/576p/576i/480p/480i
• Support HDMI-compatible 1.4, backward compatible with HDMI-compatible
• Support 1080p/60Hz video resolution
• Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• Transmitter and receiver are used in pairs, no need to set
• Signal transmission: use CAT5e or CAT6 cable (recommended) instead of HDMI-compatible cable to connect the RJ45 port of the receiver and transmitter, which can transmit 60m
• LED indicator light: when the power supply or extender is working, the corresponding LED light will be on
• Use AWG26 specification cable, follow IEEE-568B standard, signal transmission can reach 60 meters
• Connection mode: point-to-point mode with one send and receive, route distribution mode with one send and receive and switch cascade mode with one send and receive
• External power supply: DC5V/1A power adapter (note: default European standard/American standard, no remarks are shipped randomly)
• 12 months warranty

Instructions:

1. Use HDMI-compatible cable to connect the signal source to the transmitter of the extender, the cable length is 5 meters;
2. Use HDMI-compatible cable to connect the signal end to the receiving end of the extender, the cable length is 5 meters;
3. Use CAT-5e cable or CAT-6 cable (recommended) instead of HDMI-compatible cable to connect the transmitter and receiver of the extender, which can transmit 60 meters;
4. Insert the IR transmitting line into the IR interface of the transmitter, and insert the IR receiving line into the IR interface of the receiver;
5. When using, the transmitter and receiver should be plugged into an external power source.
