12V Electric Drawer Lock 60KG Magnetic Cabinet Door Lock

Secure your cabinets, drawers and small doors with this reliable 12V electric magnetic lock. With 60kg (100lbs) holding force and fail-safe operation, it's perfect for escape rooms, file cabinets, and commercial applications. Built-in surge protection and quality metal construction ensure long-lasting performance.

Product Features:

• 60kg linear holding force with fail-safe NC mode (unlocks when power is cut)

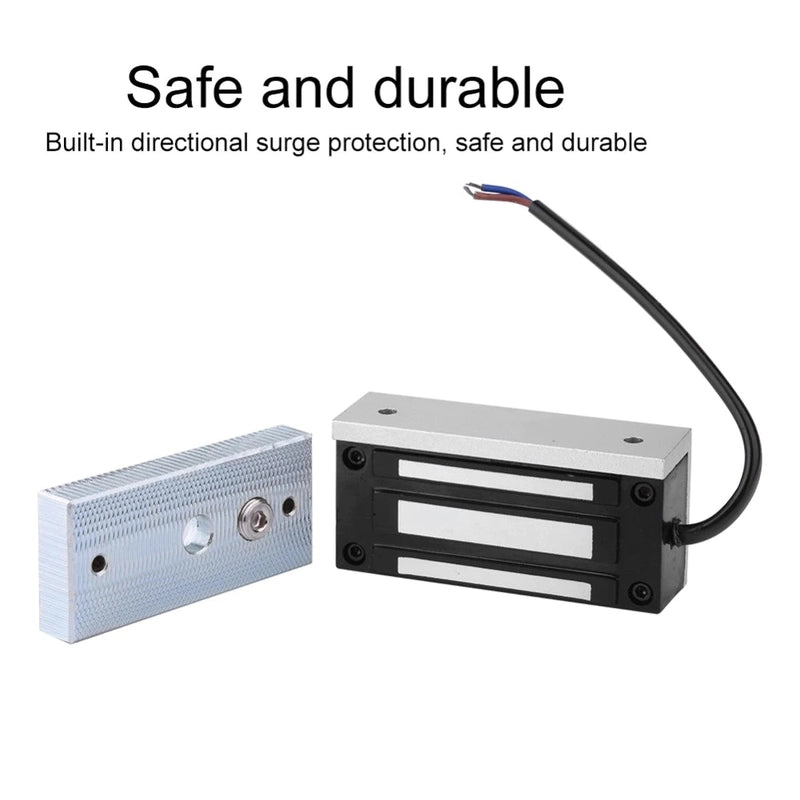

• Built-in directional surge protection for safe, durable operation

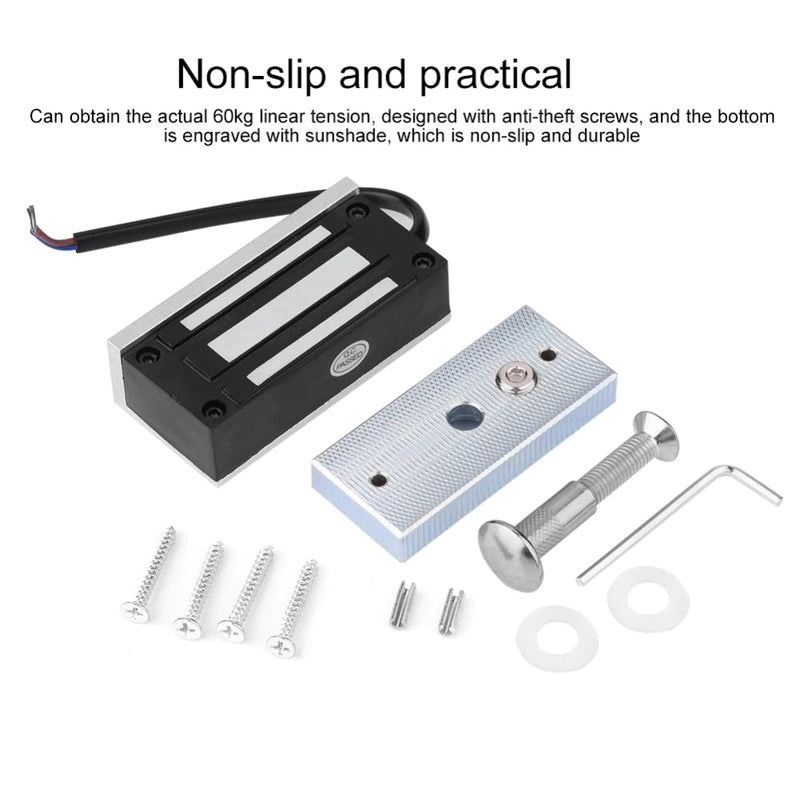

• Anti-theft screws and non-slip sunshade groove for added security

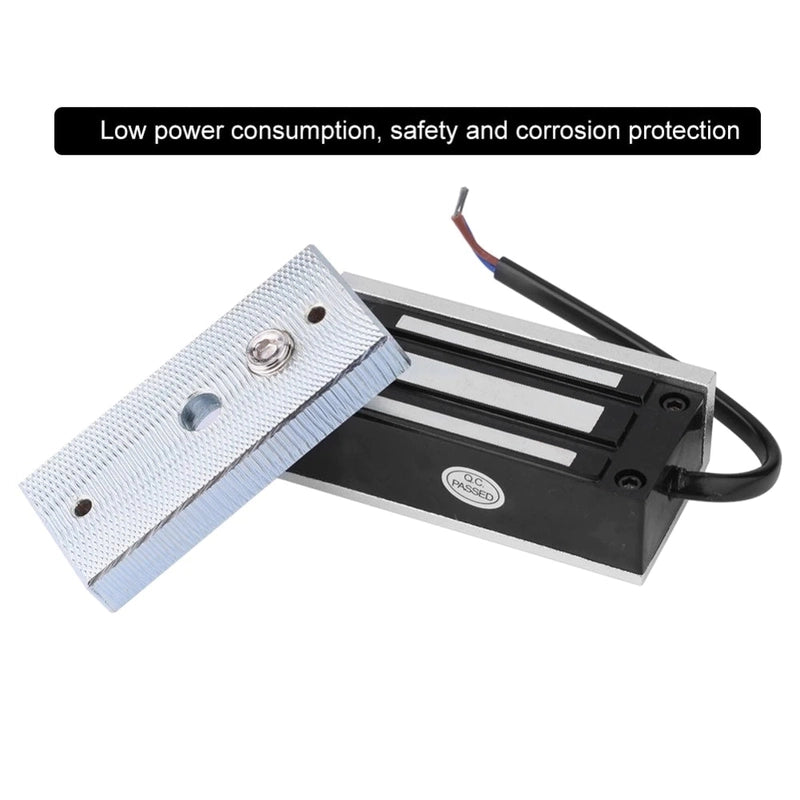

• Low power consumption (0.11-0.15A) with corrosion-resistant finish
• Metal construction for stability and reliability

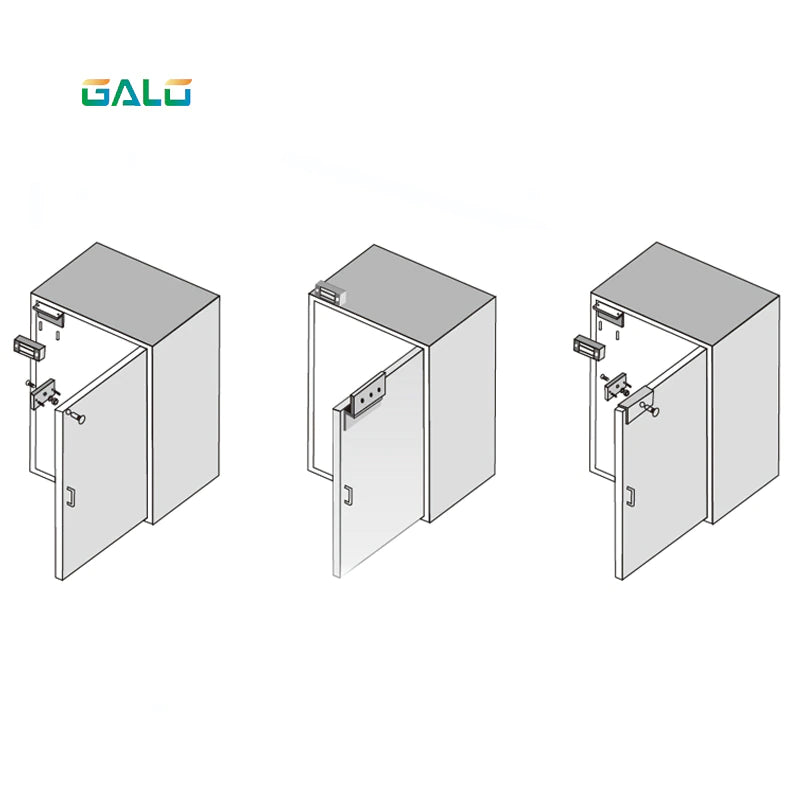

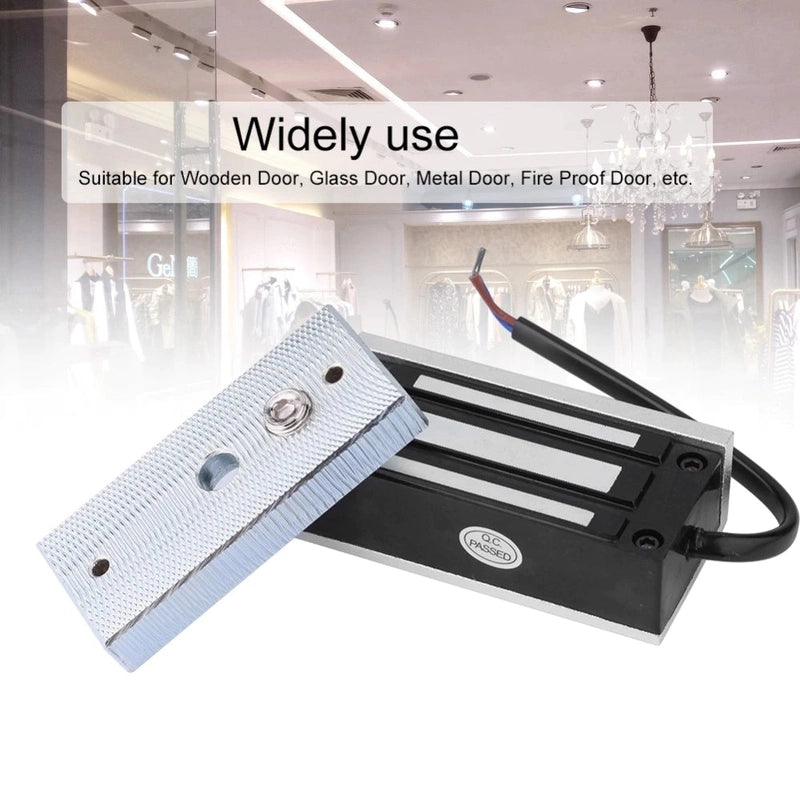

• Suitable for wooden, glass, metal and fire-proof doors

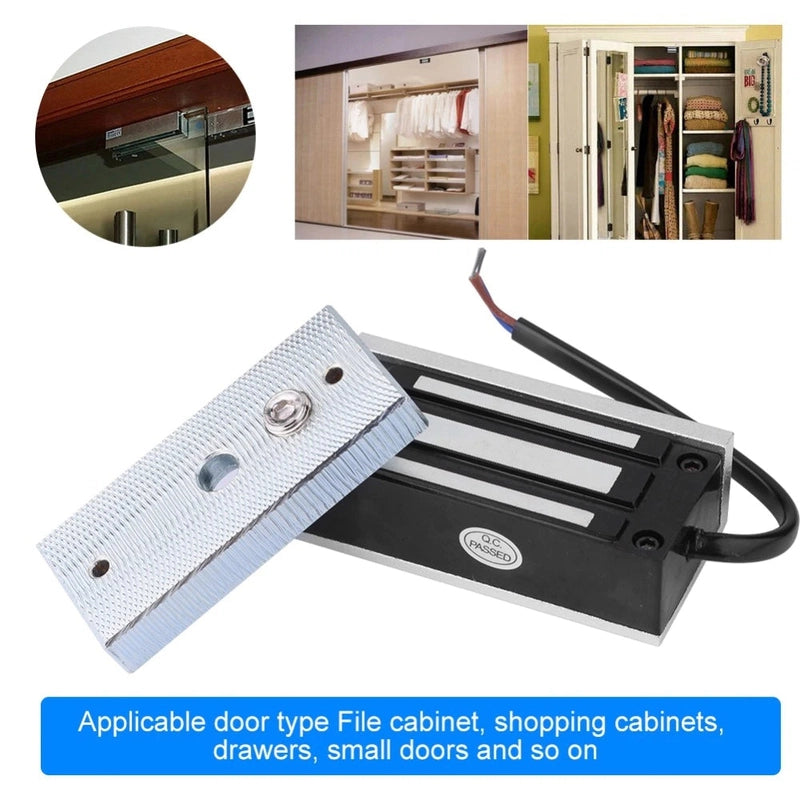

• Ideal for file cabinets, shopping cabinets, drawers and small doors

• Item Type: Magnetic Door Lock
• Colour: Silver + Black
• Dimensions: 80 × 40 × 25mm (3.14 × 1.57 × 0.98 inches)
• Package Weight: 534g
• Holding Force: 60kg (100lbs)
• Mode: NC (Normally Closed) fail-safe - locks when powered, unlocks when power is cut
• Voltage: DC 12V
• Current Draw: 0.11A - 0.15A
• Operating Temperature: -10°C to +55°C (14°F to 131°F)
• Humidity Range: 0-90% relative humidity
• Surface Temperature: Less than +20°C above ambient
• Finish: Environmentally friendly zinc plating
• 6 month warranty

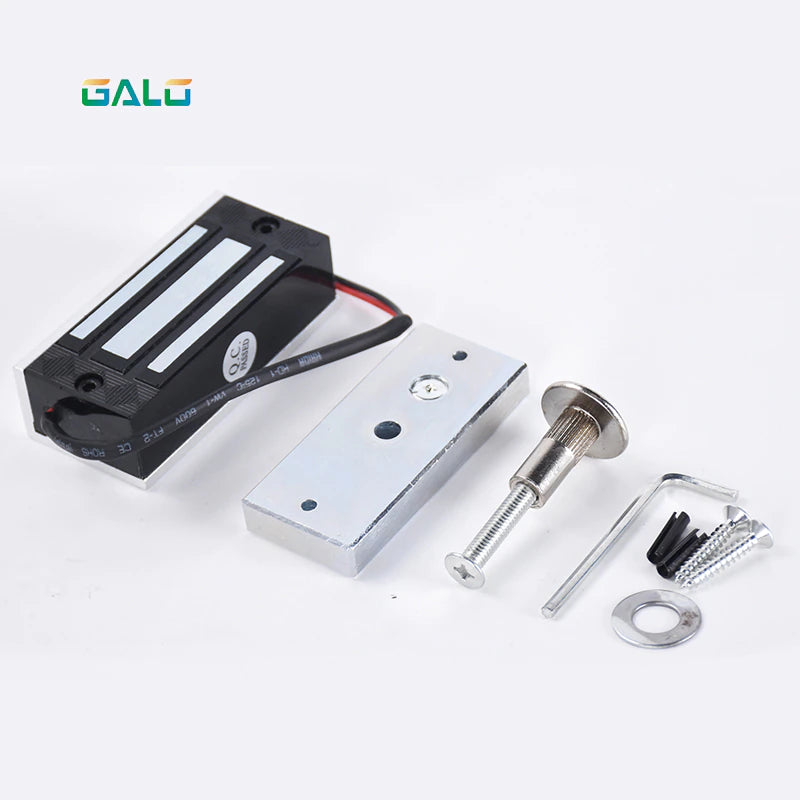

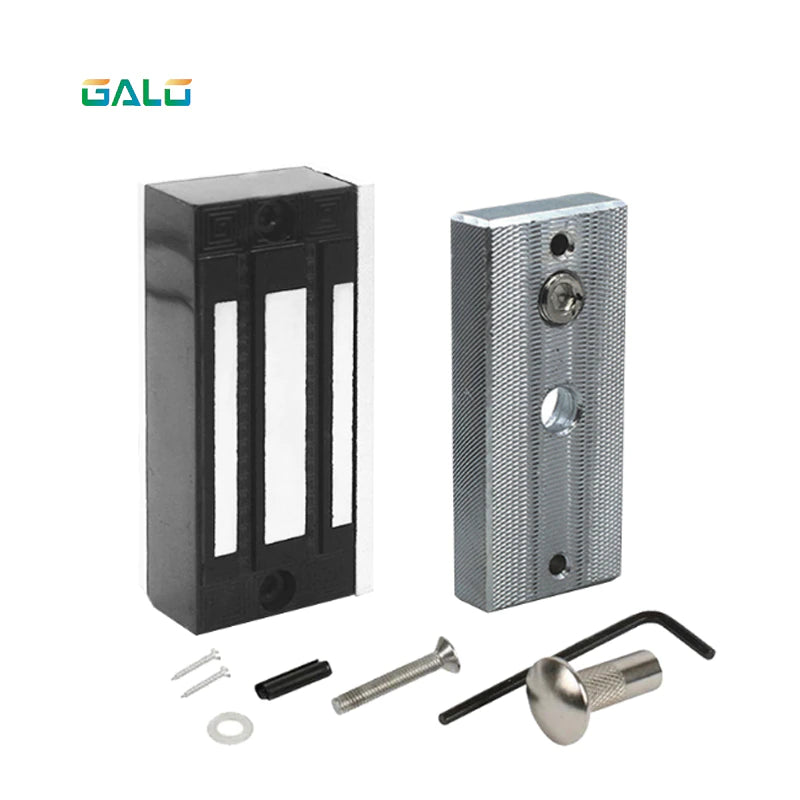

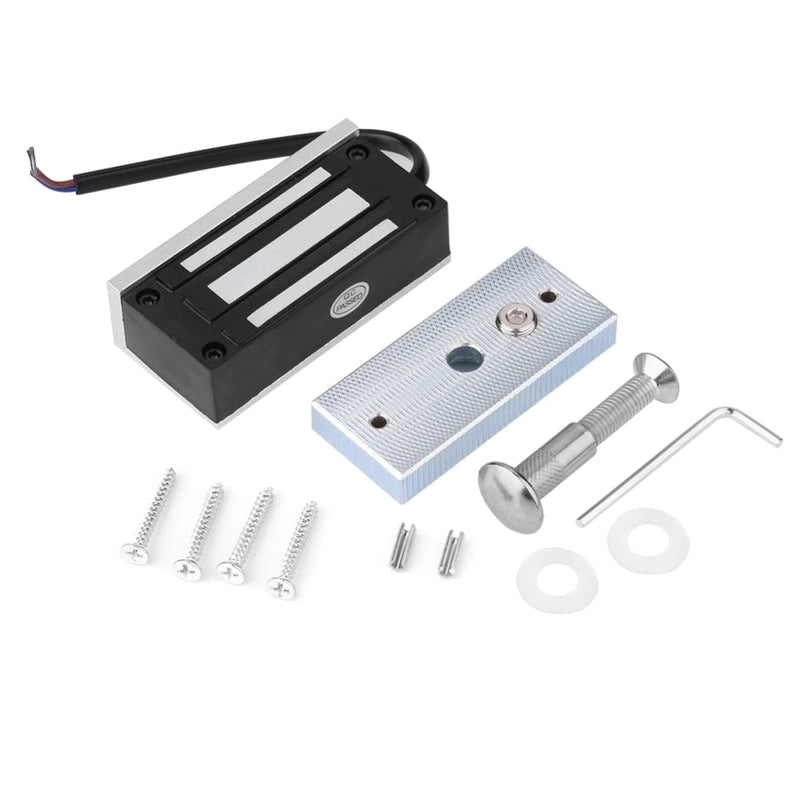

• 1× Magnetic door lock main body (NC mode)
• 1× Hanging panel
• 1× Mounting hardware kit
