Features

Power your new motherboard by using your existing ATX power supply

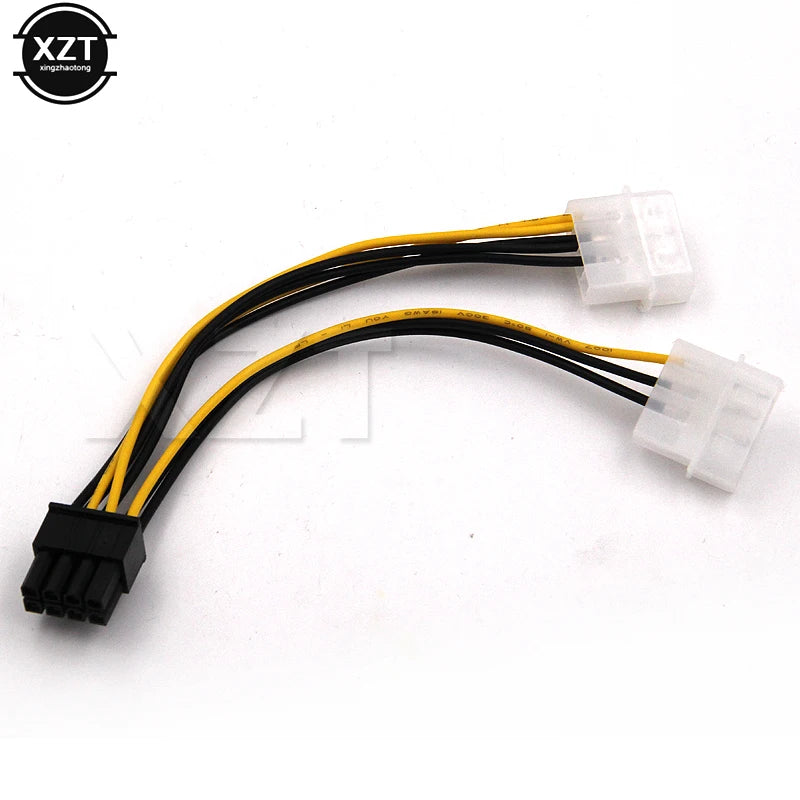

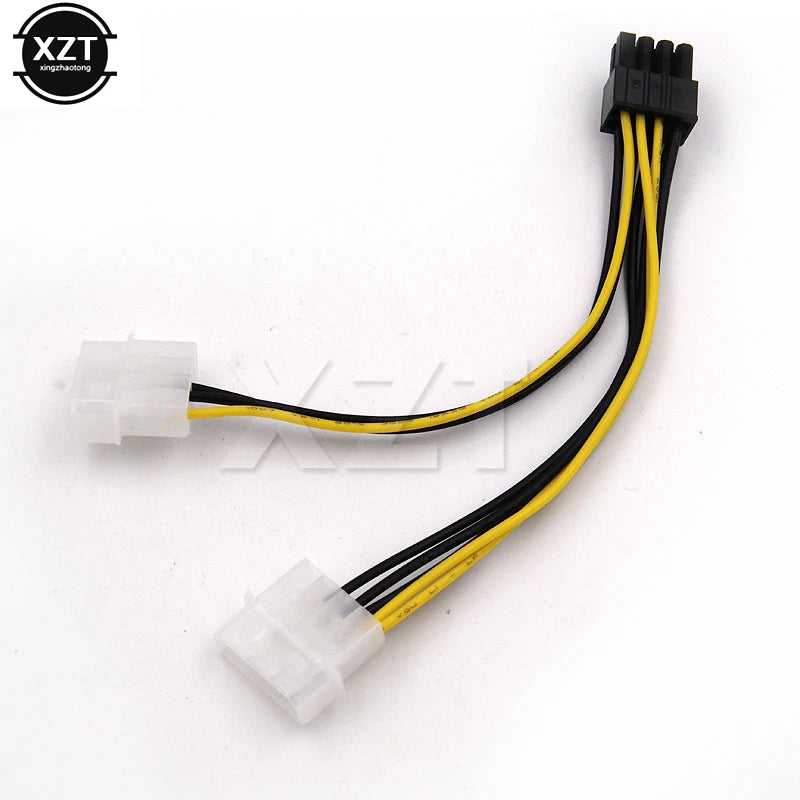

Combines two 4-pin Molex LP4 PC power supply connectors into one 8-pin PCI Express graphics card auxiliary power connector

Two LP4 with 3 male pins on the first side,Connect to PSU

One 8-pin PCI-E connector on the second side,Connect to PCIe Video Card

Specifications

Wire Gauge: 24AWG Tinned Copper - UL1007 Wire

Cable Length: 6 inch

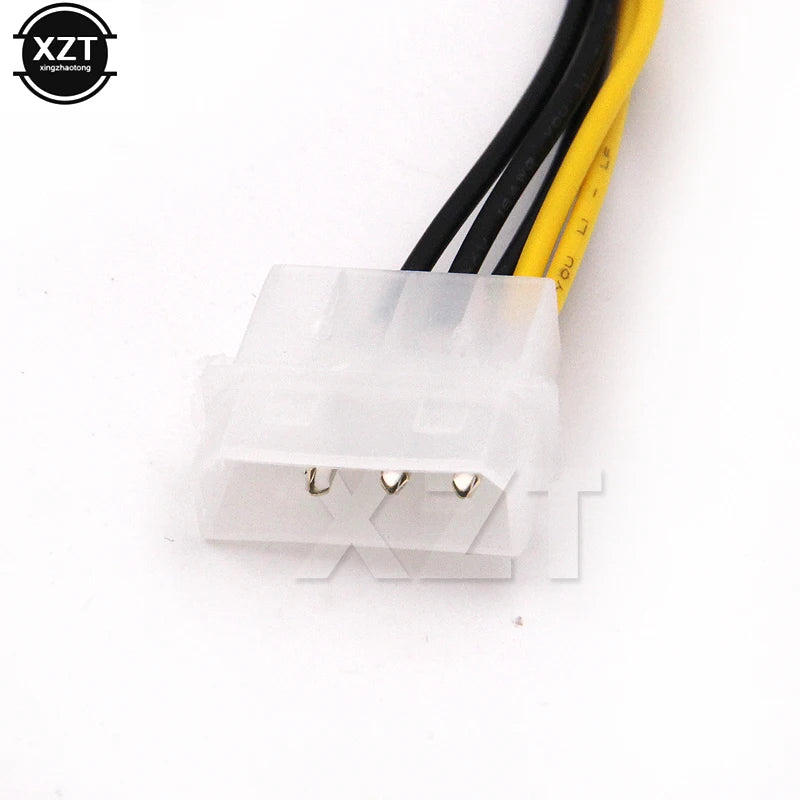

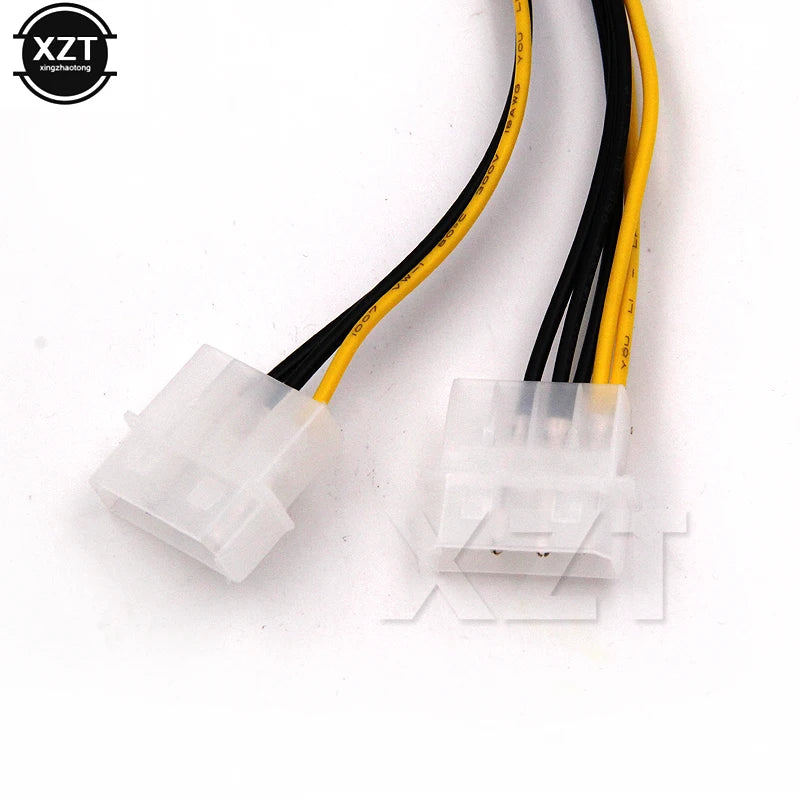

Connector A: 1 - 5.25" Molex 4 pin LP4 Male(pins: P1- 1 wire of 12V,P2- 1 wire of GND,P3- 2 wires of GND)

1 - 5.25" Molex 4 pin LP4 Male(pins: P1- 2 wires of 12V,P2- 1 wire of GND,P3- 1 wire of GND)

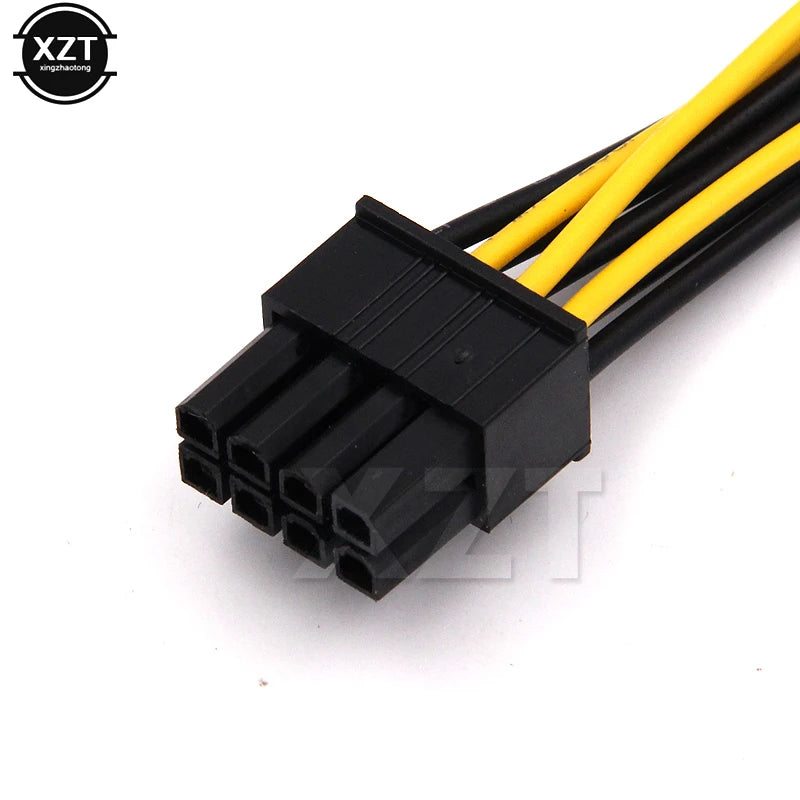

Connector B: 8-pin PCIe Male

Voltage:12V DC
