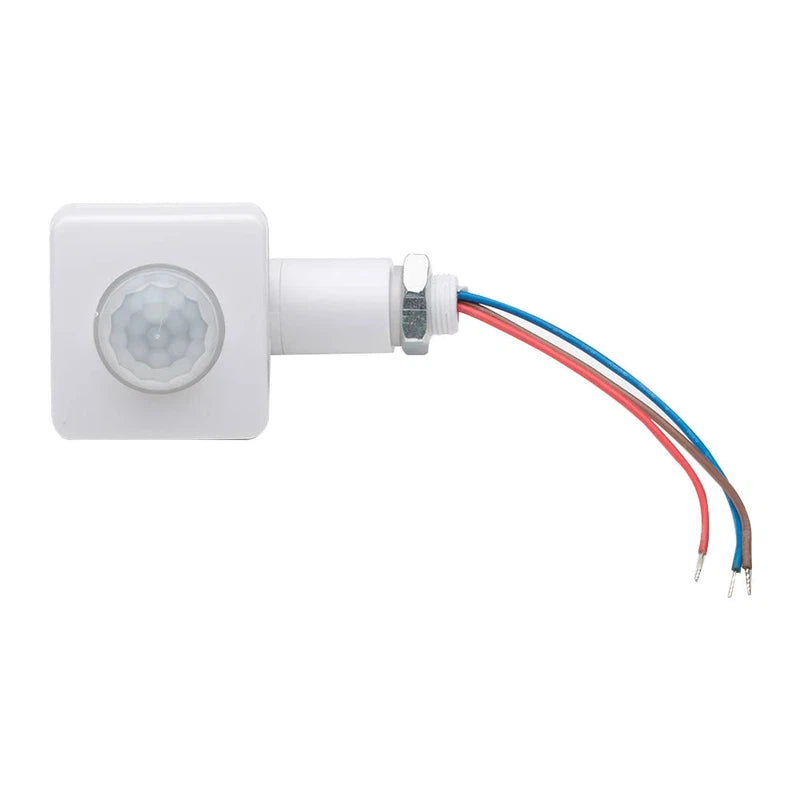

AC 85-265V IP65 PIR Motion Sensor

Features:

1. High sensitivity, high temperature flame retardant material.

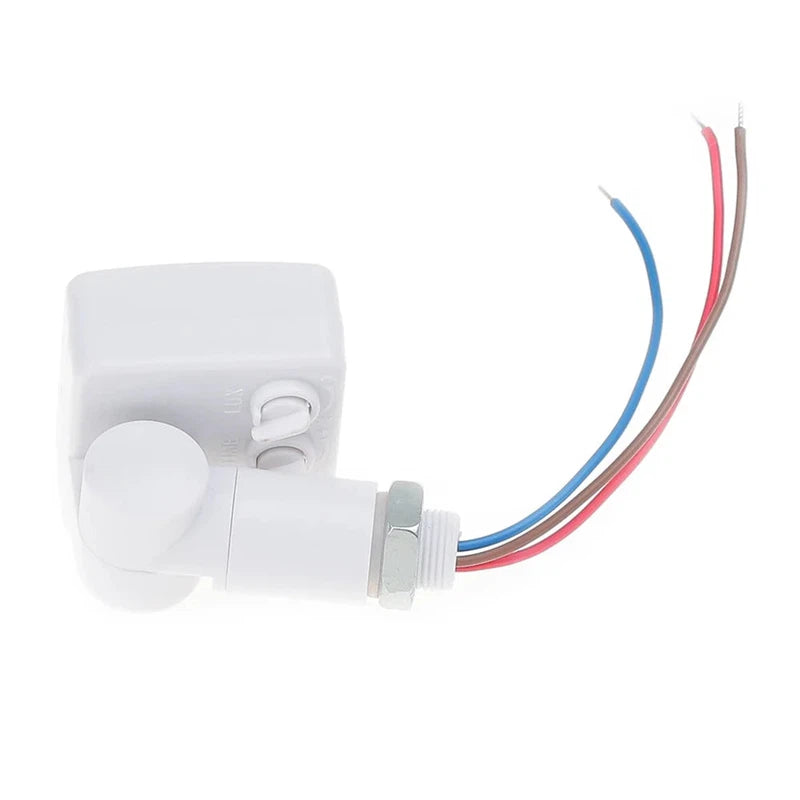

2. The horizontal direction can be rotated 180°, and the vertical direction can be rotated 180°.

3. Rainproof, waterproof and moisture-proof, suitable for all kinds of flood lights and outdoor lights.

4. Widely used, can be used in various locations such as stairs, aisles, corridors, toilets, office buildings, schools, communities and other public places - switch control of lamps such as downlights, spotlights, track lights, panel lights, ceiling lights, etc.

Specification:

Type: Human infrared sensor

Colour: black, white

Size: 75*42*52mm

Detection angle: 160°

Installation height: 1.8-2.5M

Working humidity: <93% RH

Power consumption: <0.4W

Material: flame retardant ABS

Working frequency: 50/60Hz

Opening size: opening 12mm, 10mm

Operating temperature: -10°C~+40°C

Ambient light: 2-200OLUX (adjustable)

Detection distance: 5-12M (24°C) adjustable

Delay time: 5 seconds - 8 minutes (adjustable)

Working voltage: AC85-265V (support customization)

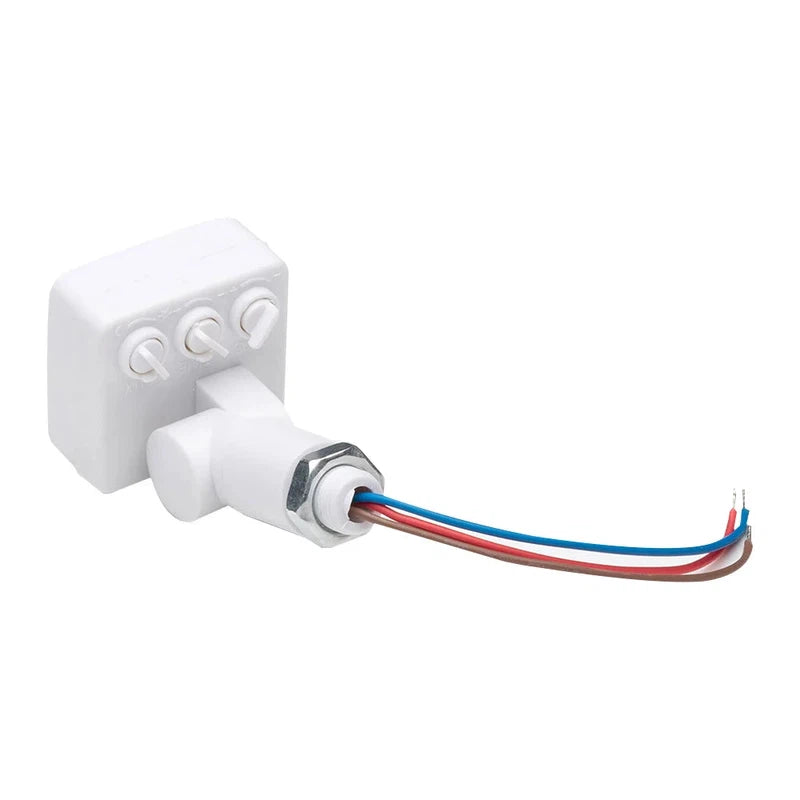

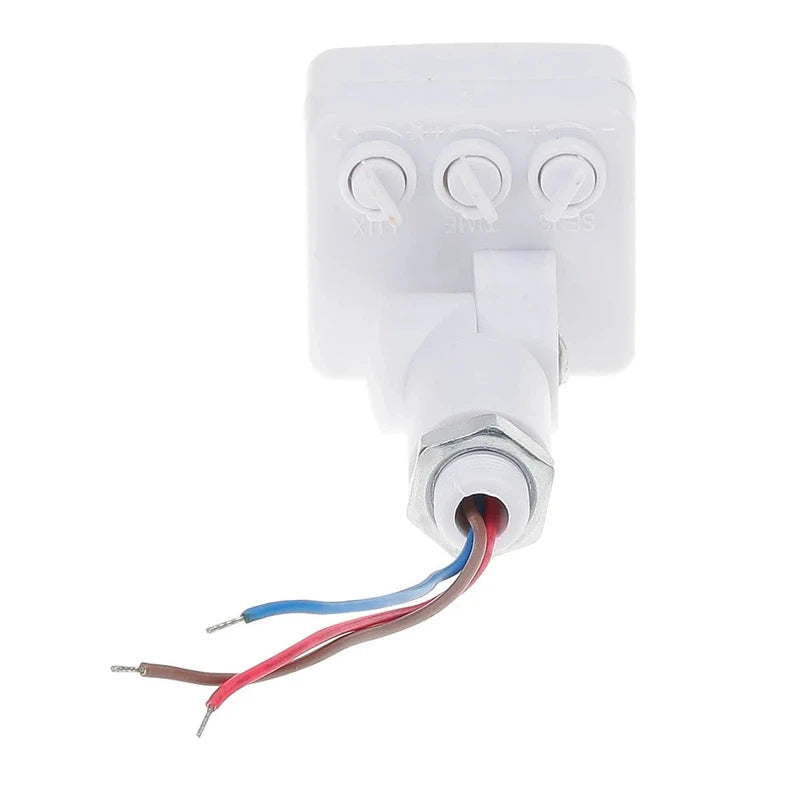

Installation method: opening, when installing, the adjustment button faces down

Rated load: 300W tungsten lamp; 60W energy saving lamp. LED lamp

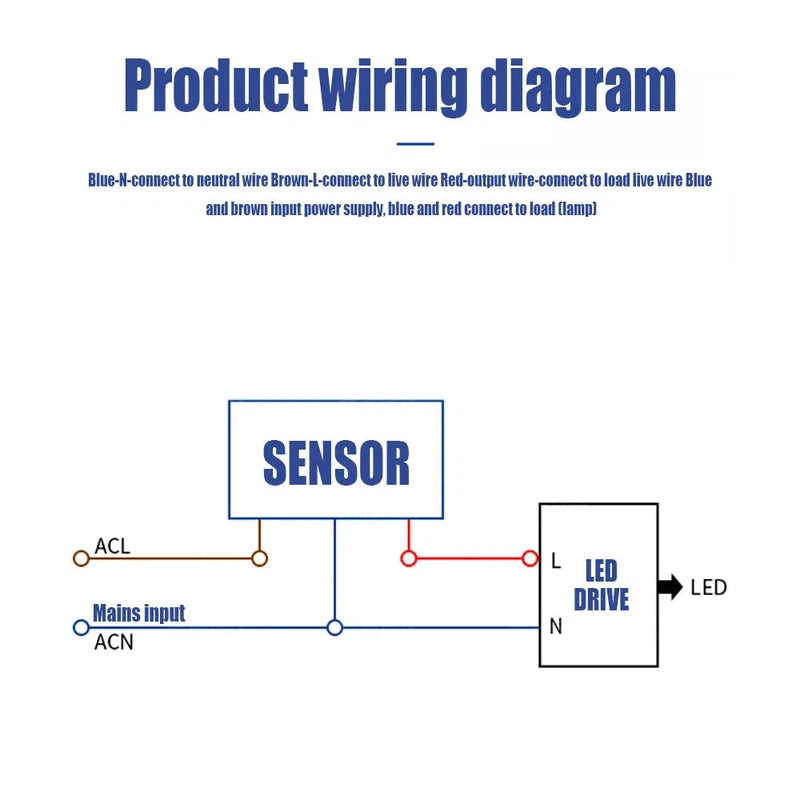

Wiring instructions: N-blue (connected to neutral wire) L-brown (connected to live wire) output a red sensor output wire)

Blue and brown input power blue and red connected to load (lamp)

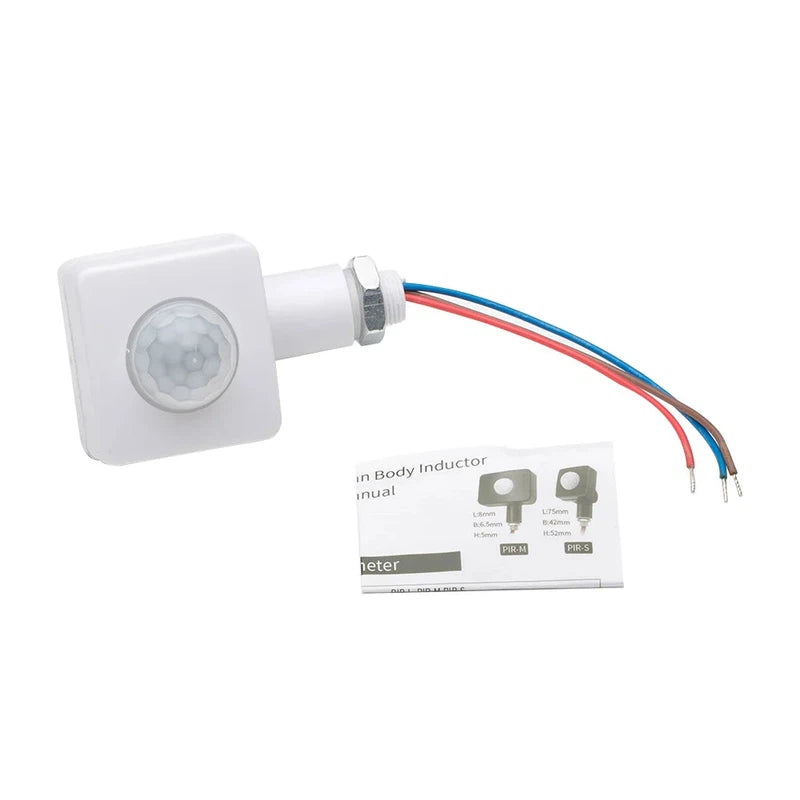

Shipping list:

1*AC 85-265V mini human body infrared sensor switch 12MM
