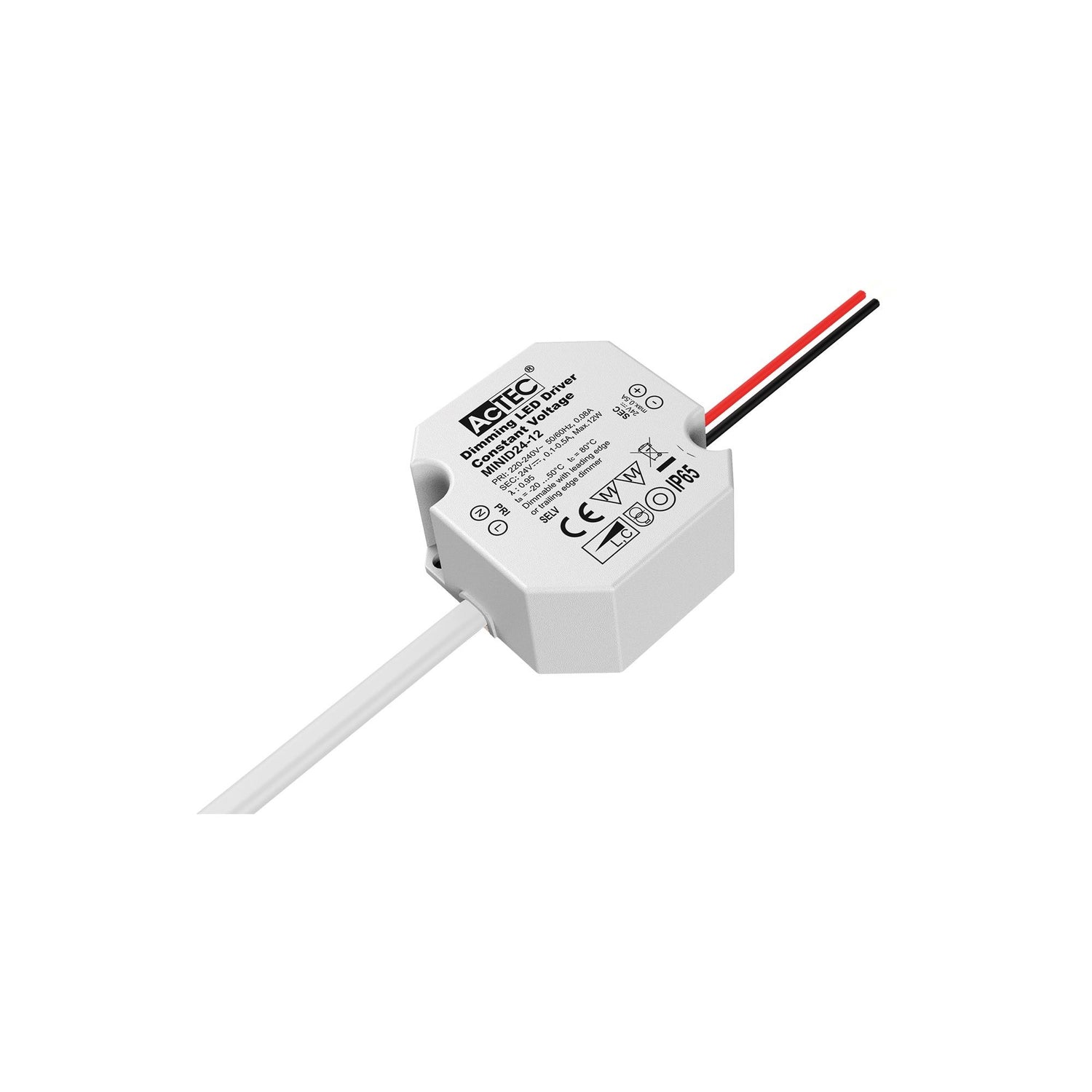

AcTEC MINID12-12 Triac Dimmable LED Driver 12W 12V IP65

A dimmable driver small enough to hide almost anywhere. At just 50 × 48 × 24mm, the AcTEC MINID12-12 delivers smooth, flicker-free 1–100% dimming with both leading-edge and trailing-edge wall dimmers — ideal for retrofits and compact fittings where a full-size dimmable driver won't fit. IP65-rated and supplied with leads on both sides for quick wiring.

Specifications

• Output: 12V DC constant voltage, 12W max
• Dimming: triac (leading or trailing edge), 1–100%, analogue flicker-free
• Input: 198–264V AC (suits NZ mains)
• IP65 rated · Protection Class II · SELV equivalent
• Protections: open circuit, short circuit, overload, over-temperature
• Ambient temperature: −20°C to +50°C
• Size: 50 × 48 × 24 mm
• Standards: EN 61347-1/-2-13, EN 62384, EN 55015, EN 61547 and others
• Warranty: 5 years
• 6 month warranty

In the box

• 1 × AcTEC MINID12-12 dimmable LED driver

Contact us for bulk discounts, product variations or custom orders
