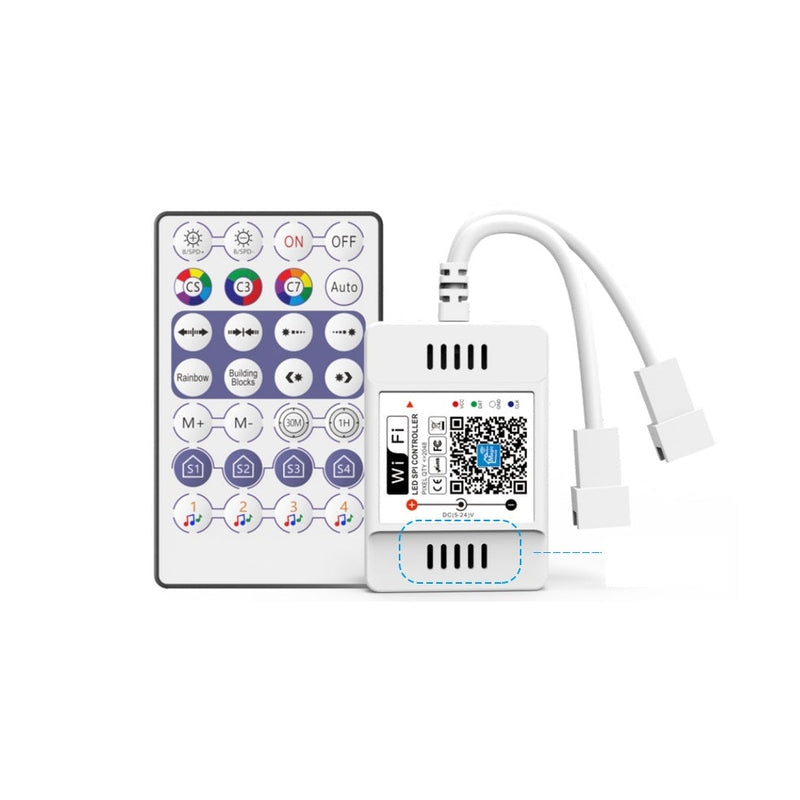

Controller, WS2812B WiFi Voice Music SPI LED Controller for 3pin WS2811, WS2812 RGB IC LED Light Strip

Working Voltage: DC5-24V
SPI Output signal: support one-wire driver IC, able to control up to 2048 pixel
Support: Android 4.0 or IOS 9.0 or higher
APP name: Magic Home Pro
Distance: 20m (visible)
Applications:
SPI Music controller: DC5-24V Can use for 3pin ws2811 WS2812B, RGB Type LED strip (APP: Magic home pro)

Note: please check the voltage of the strip you connect with, then use the right power supply to work with.

Detailed introduction of APP functions

• Fixed Mode;
• Rbm Mode;
• DIY Mode;
• Music Mode;
• Multi colour function;
• Timer function;
• Delay on/off function.

Magic home app support works with Alexa, Google Assistant, smartthings, Alice control.

FAQ:How to set the IC model and IC numbers?

Answer: Long press the device and click on "Change LED Strip Type” to set the IC model,

Wiring and Sorting, Number of points, Number of segment (Total number of points cannot exceed 300 in each segment and total LED chip’s quantity cannot exceed 2048).

On music mode, the total number of points in each segment and the total number of segments should be less than 150 points and 64 segments, the total LED Chip’s quantity should be less than 960.

Note:

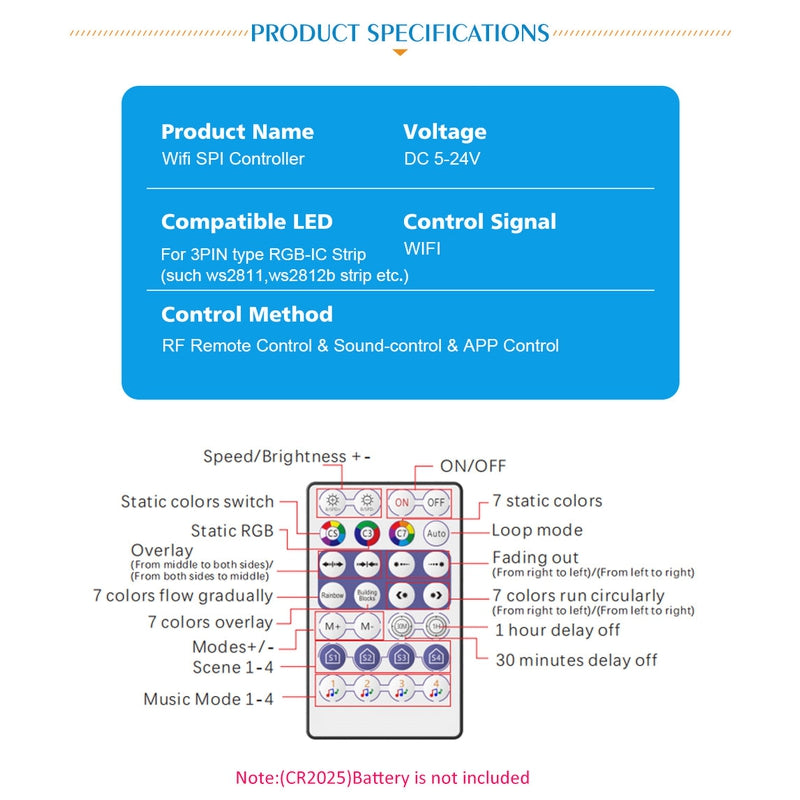

1)Remote control code matching function: power on the device, hold down "ON" key for 5 seconds, the device flashes slowly to indicate successful code matching.

2)Remote code clearing function: power on the device, hold down "OFF" key for 5 seconds, the device flashes quickly to indicate success

3)Scene mode can only record one custom colour

4)Please set the led type to 'ws2812b'not matter you use ws2811 led strip or ws2812b led strip; Suggest use 'Device MIC' mode on app;
