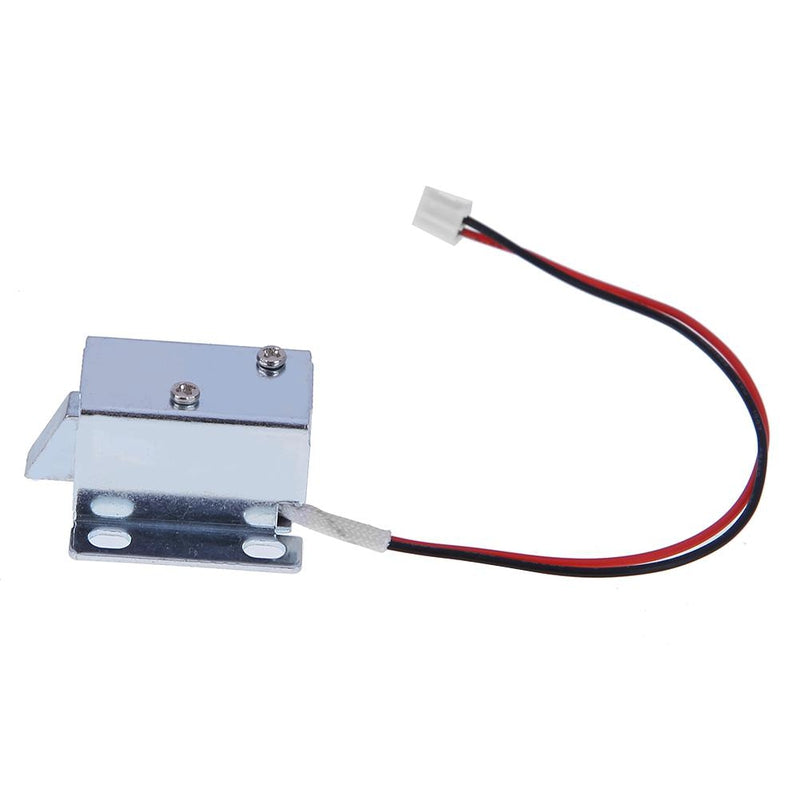

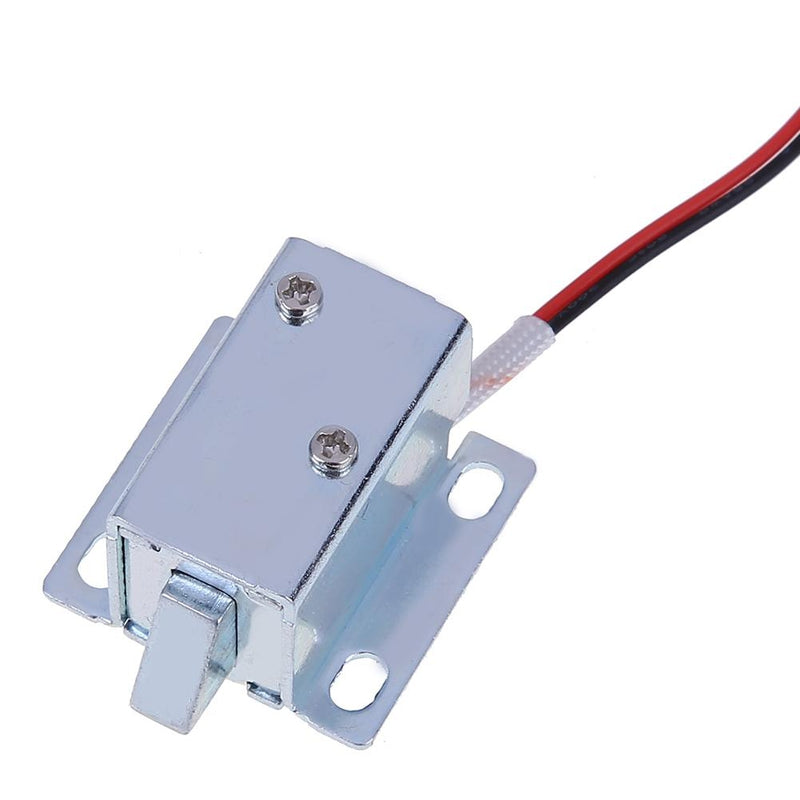

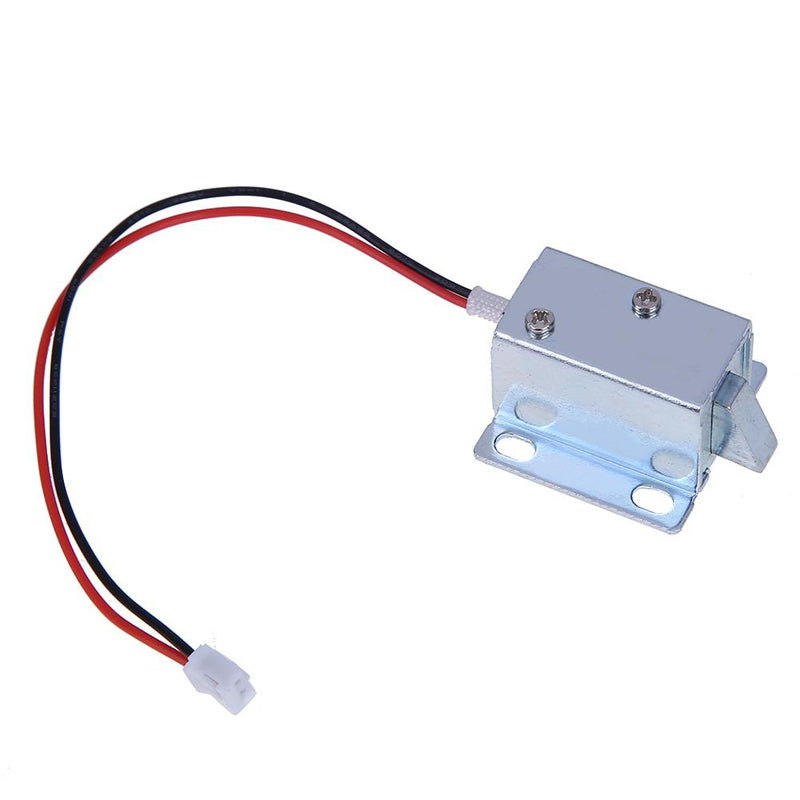

DC 5V-6V/DC 12V Mini Small Size Solenoid Electromagnetic Electric Control Cabinet Drawer Lock for DIY Project

Regular price $16.99
Regular price Sale price $16.99
Sale Coming soon
Incl GST. Shipping calculated at checkout.

Shipping Policy

Return policy


Product Name: 99-S12 smart cabinet electromagnetic lock
Product type: it can be used as the executing organ of electronic lock

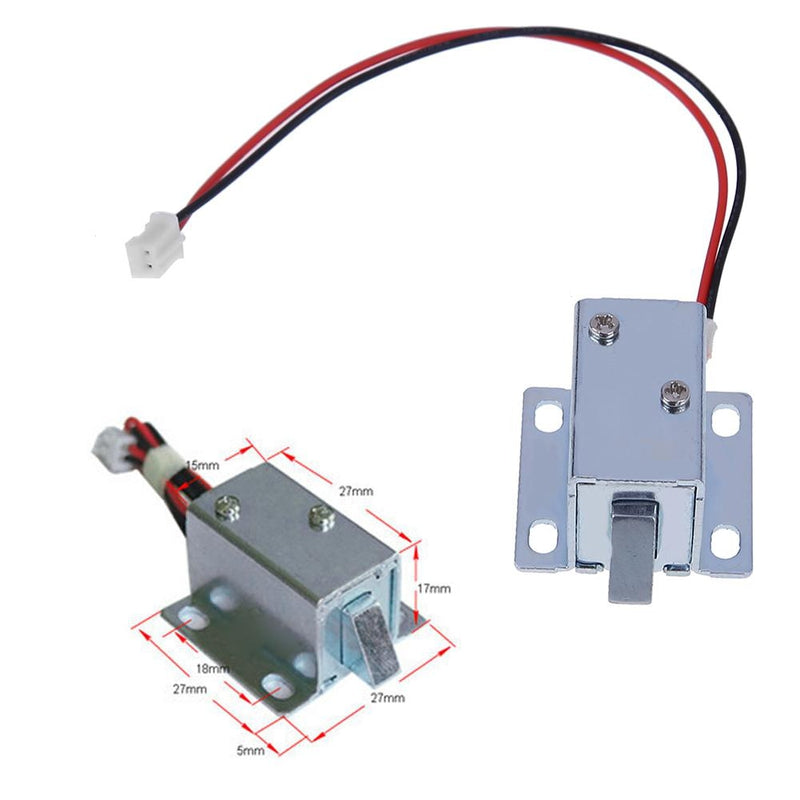

Product size: 3.3x2.7x1.7cm/1.3x1.06x0.67in
Product weight: 35g
Product category: 12V universal
Packing: 1pc in OPP bag, 10pcs in Kraft carton packing, so can sell 1 or 10

Scope of work:
Pull stroke: 0~4mm
Suction: 4mm≥80g(0.35A)kg
Retention: 0mm≥120g
Mode of operation: power on 90%, interval
Ambient temperature: -25 ~ 80 degree celsius
Relative humidity: 45%~80%
Atmospheric pressure: 86~106Kpa
Medium withstand voltage: AC 1000V
Insulation resistance: 50MΩ
Lead out form: lead
Life expectancy: 10000000 times

1, ultra-thin design, compact and delicate, easy installation!
2, safety and stability: the lock body is made of iron material, hard and
3, work mode: electrify unlock, close door lock way, application simple!
4, low power consumption: voltage 12v three specifications, current is
only about 350mA/600mA/1.2A, power instant trigger unlock!
5, long life: aging test: 100 thousand times, durable!
6, directional: symmetrical design, bright processing, regardless of the
positive, negative, left, right, universal installation, convenient!

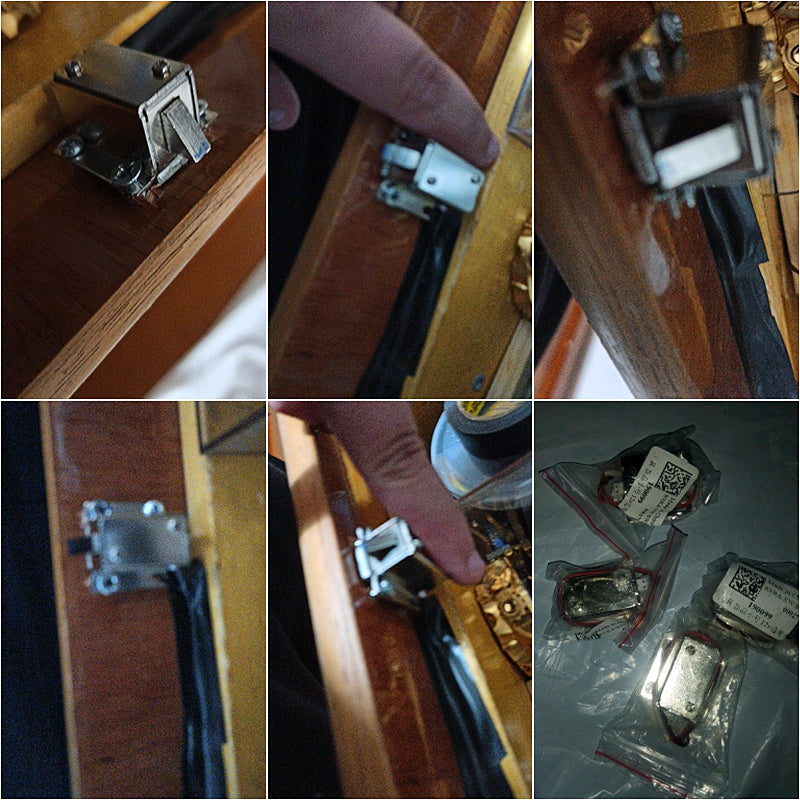

7, installation methods: mounted, hidden, embedded arbitrary installation, 360
degrees from all angles applicable!
8, security: anti vibration, anti prying, drilling, open design technology for
a variety of products of cabinet!

Working principle
Power on, the lock retract, unlock;
Power off, the lock pops up, closes the lock

Application principle
Unlock: control the power on or off
Lock: push door, lock automatically locked
