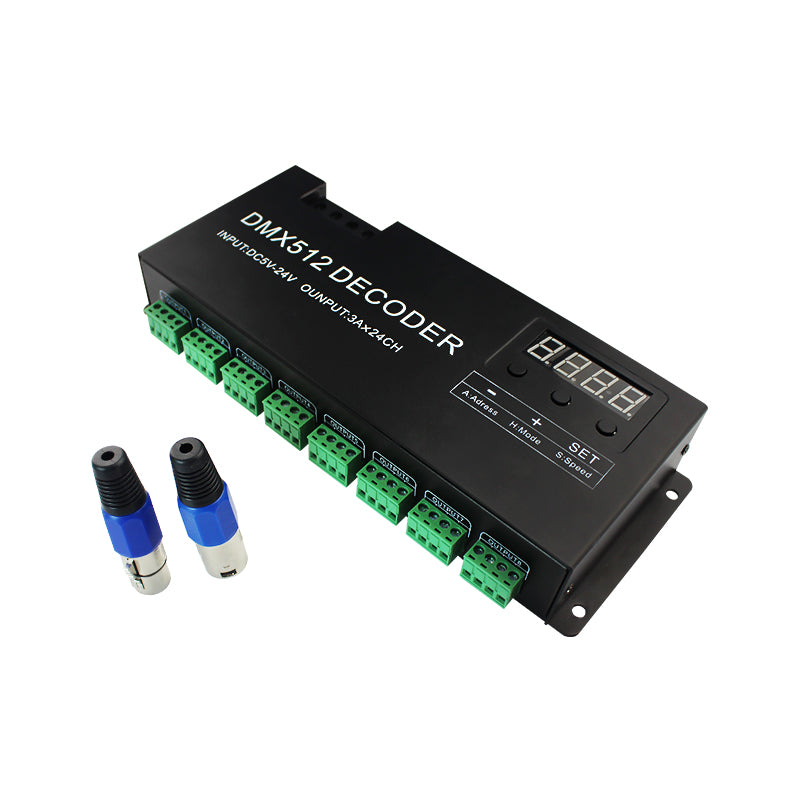

Display Screen DMX512 Decoder 24CH RGB

This DMX decoder adopts advanced computer control chip, can receive the international DMX -512 standard digital control signals and converted into PWM controller signal to drive the LED. It can be controlled by the DMX Console and can be connected with numbers of DMX Decoder to increase the output power to realize all kinds of changing mode. Besides, this DMX decoder can be used as the synchronous controller to control the LED alone, it can realize the synchronous effects. This decoder adopts the digital tube to show the address code, and with 3 buttons to setting, make it easier to use.

● Working temperature: -20-60 °C
● Supply voltage: DC5-24V
● External dimension: L249×W105×H43mm
● Packing size: 270*130*45mm
● Net weight: 720g
● Gross weight: 930g
● Static power consumption: <1W
● Output current: each channel 3A
