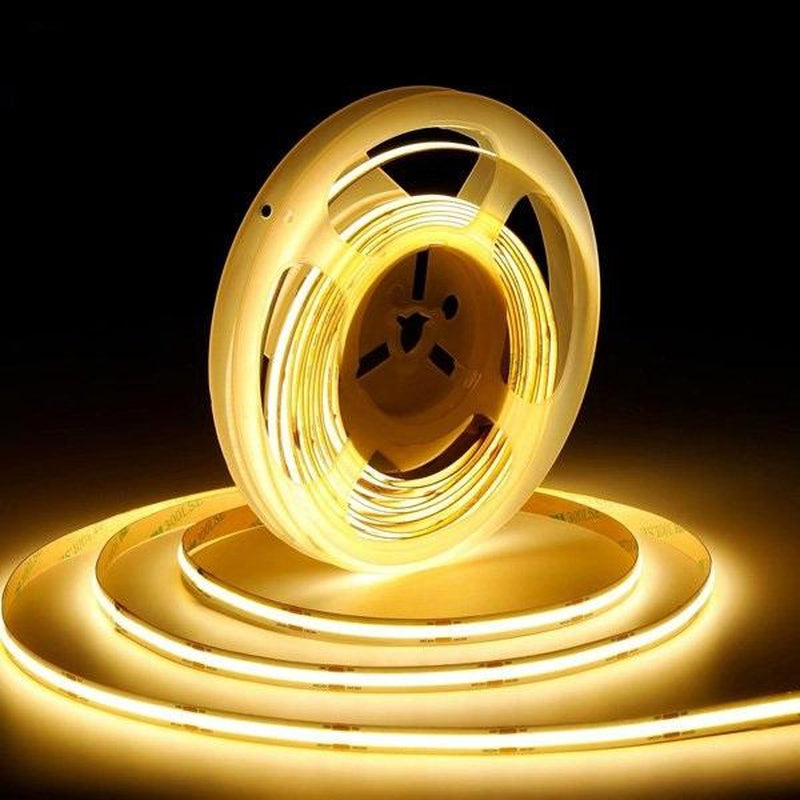

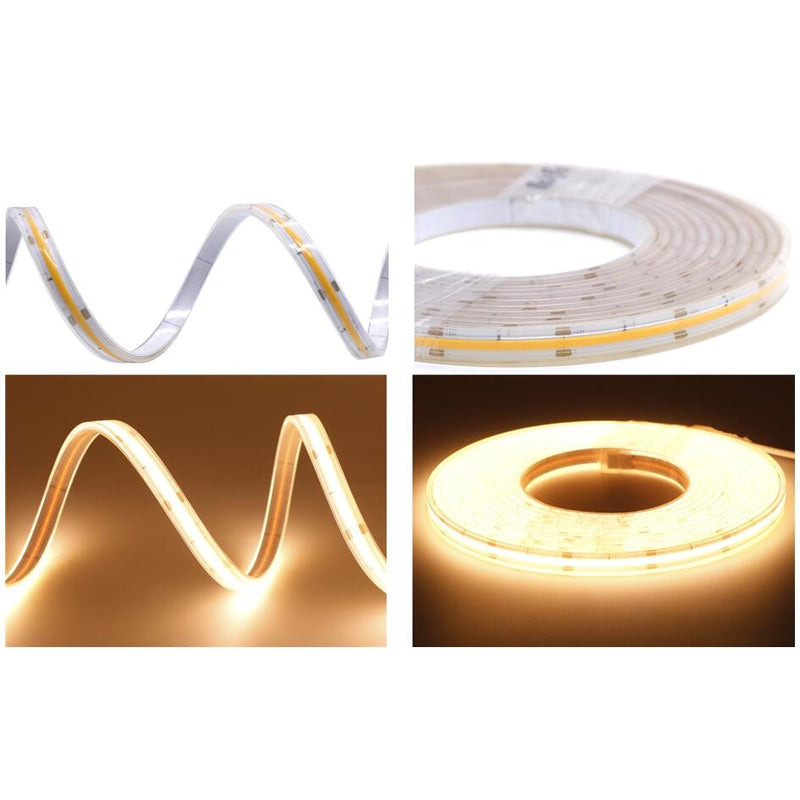

Brand new high quality LED strip sold per meter, amazing looking effect as no diffuser required! Superior to other light strips with the solid light effect.
We supply up to 5m continuous length with cable soldered on one end. 5m will have cable soldered on both ends. Please contact us for multiple or custom lengths.
Requires 24V power supply not included.
COB LED Strip Specifications:
| Product Name: | COB LED Strip Light |
| Model: | COB24VX-CCT |
| LED Light Source: | COB |
| LED QTY/M: | 480 |
| Power: | 11W/m (55W per 5m roll) |
| Input Voltage: | 24V |

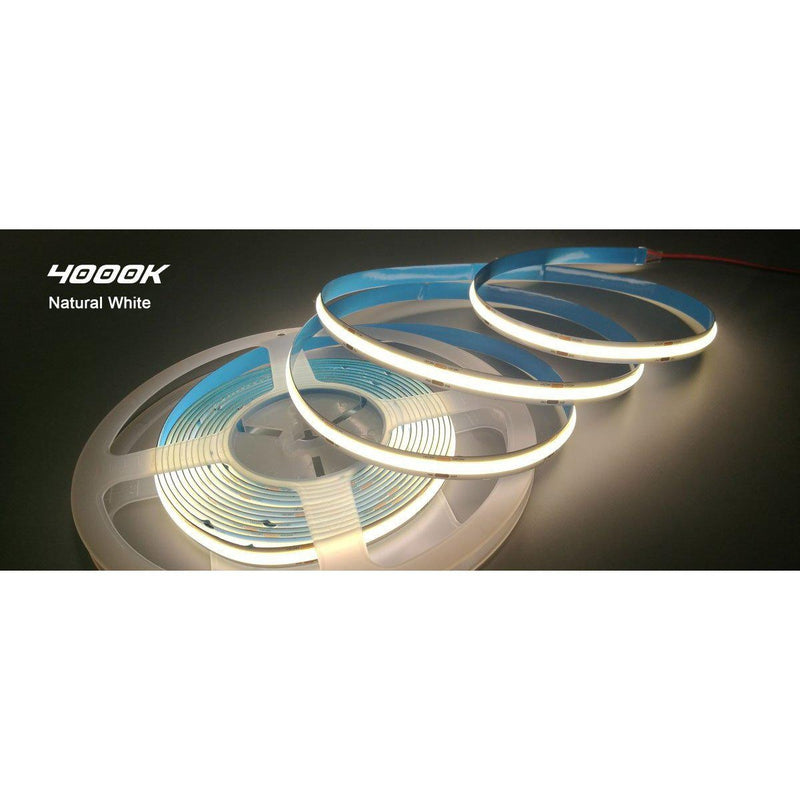

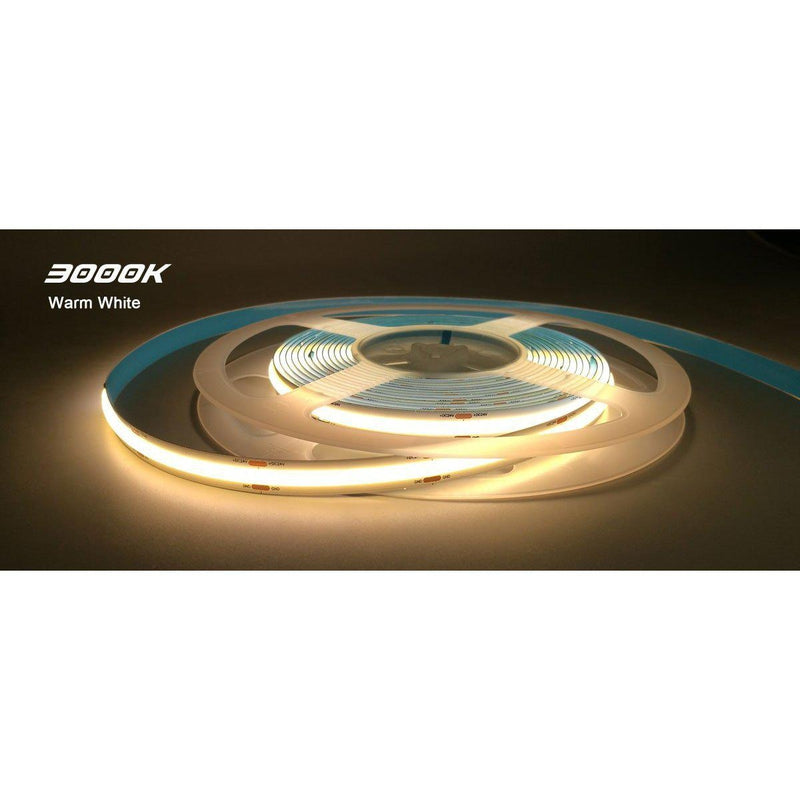

| CCT: | 3000K, 4000K |
| CRI: | >90 |
| LM/W: | 80-120LM/W |
| Lumen Output/Meter: | 420LM~1680LM |
| PCB Thickness: | 2oz |
| PCB Color: | White |

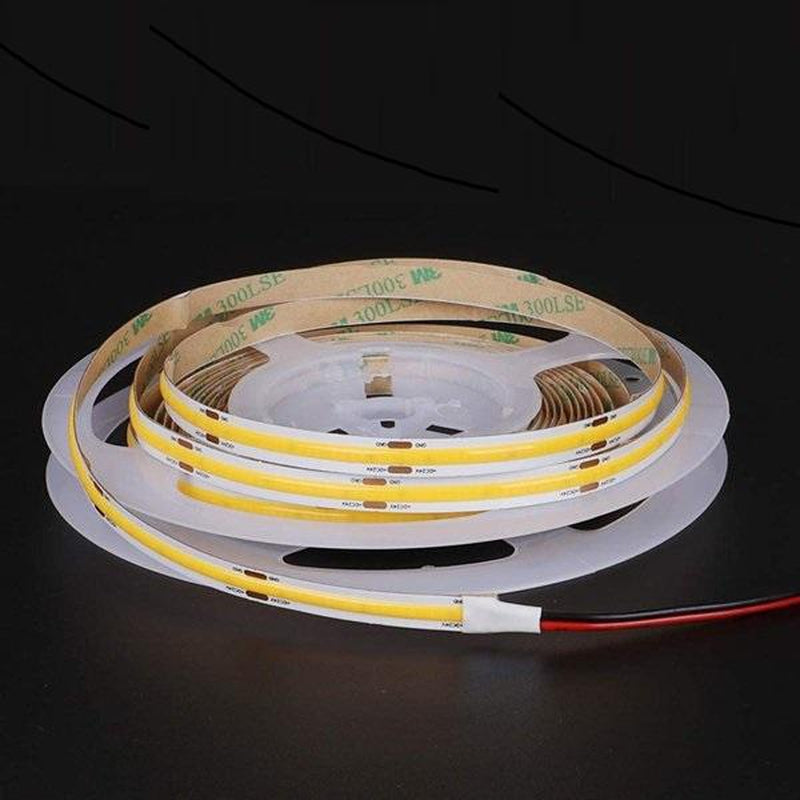

| Tape: | 3M 300LSE tape on the back |
| Length per reel: | 5M |

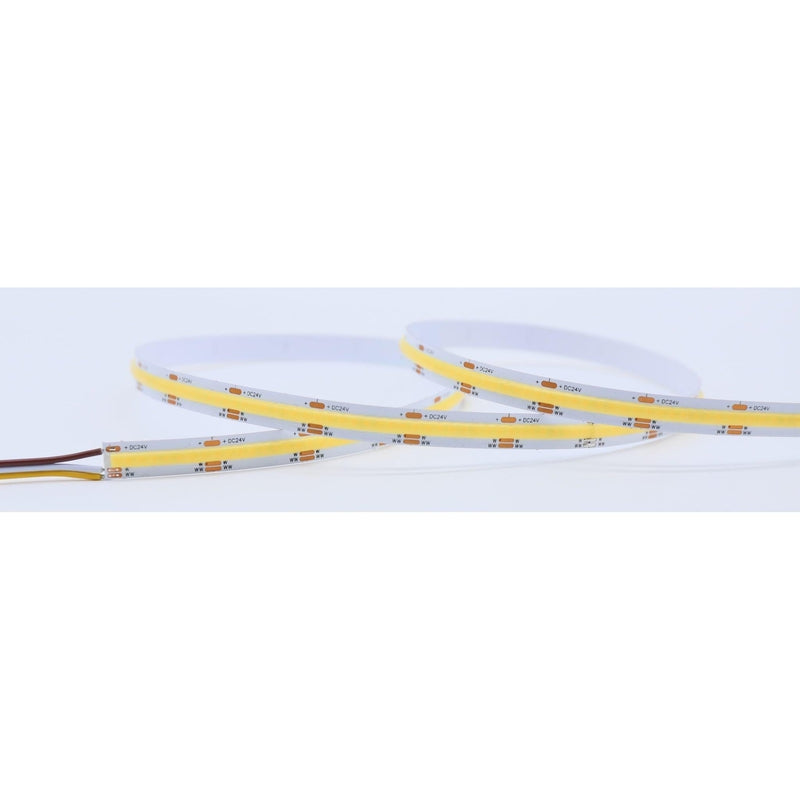

| Standard Connector: | 20AWG red/black cable on the end |
| Length of Cuttable: | 50mm |
| PCB width: | 8mm |
| LED Strip Dimension: | (Width)*1.6mm(Height)*Length |
| Length: | 5000mm (16.4ft) per roll |
| Length of Connection Cable: | 150mm length |
| LED Beam Angle: | 180° |
| Work Temperature: | -20~60° |
| Working Humidity: | 40%-70%RH |
| Working Lifetime: | 30,000+ hours |
| Warranty: | 3 Years |

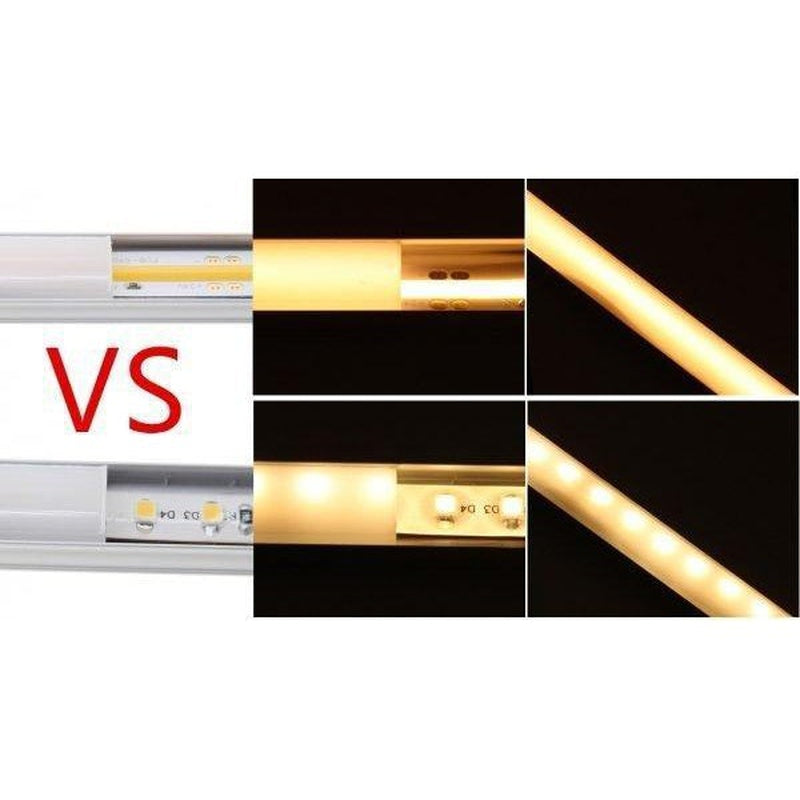

What’s the difference between COB LED and SMD LED?
The full name of COB is the Chip On Board: directly package the chip on the circuit board. See the following picture:

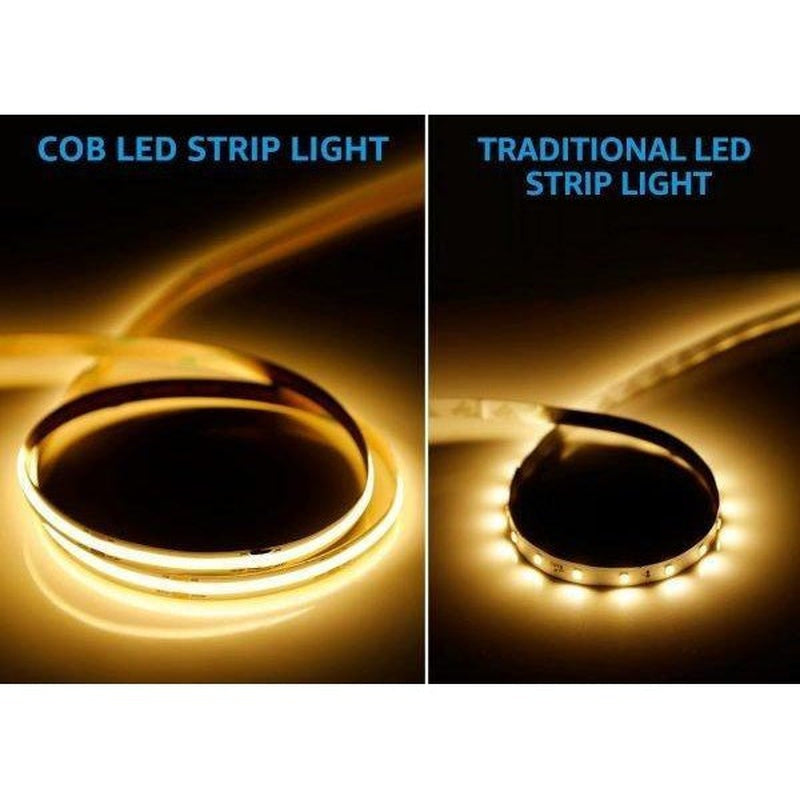

Superior to typical LED strips
COB LED Strip, 480leds/m DC12V, Length of Cuttable: 50mm, PCB Width: 5mm (8mm, 10mm for optional)
