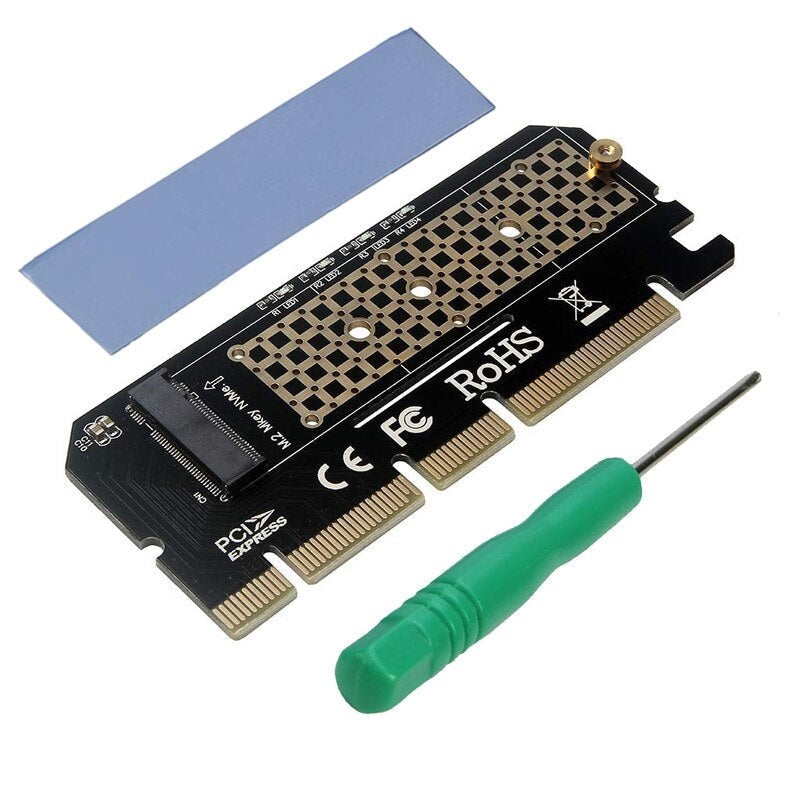

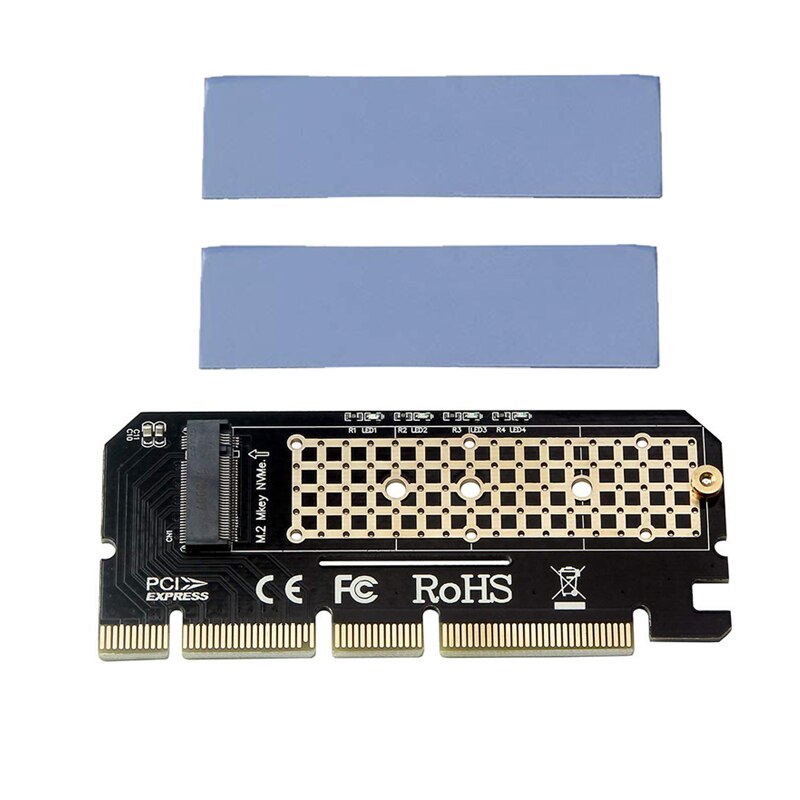

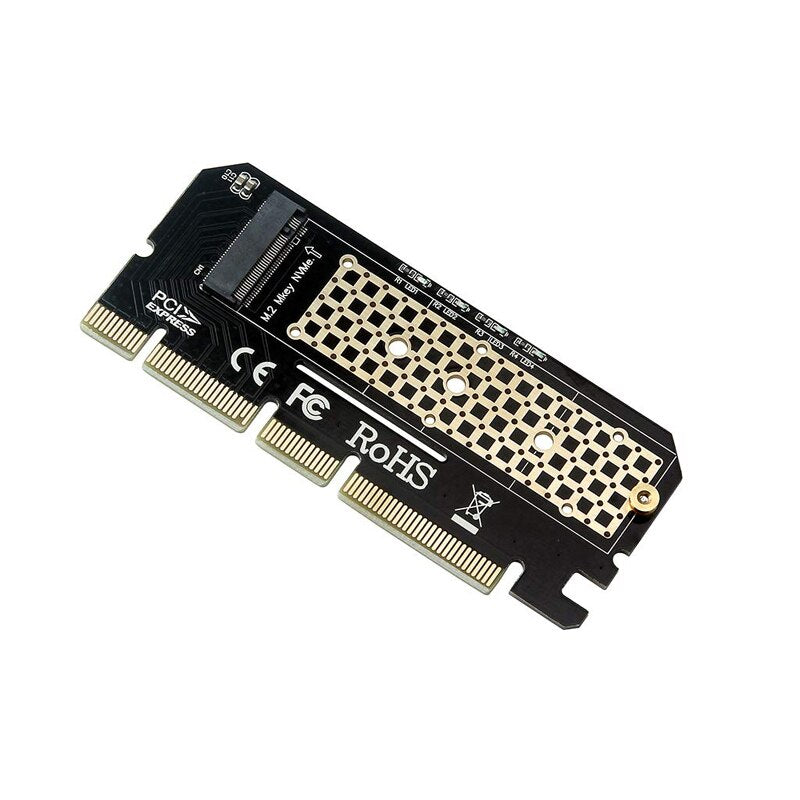

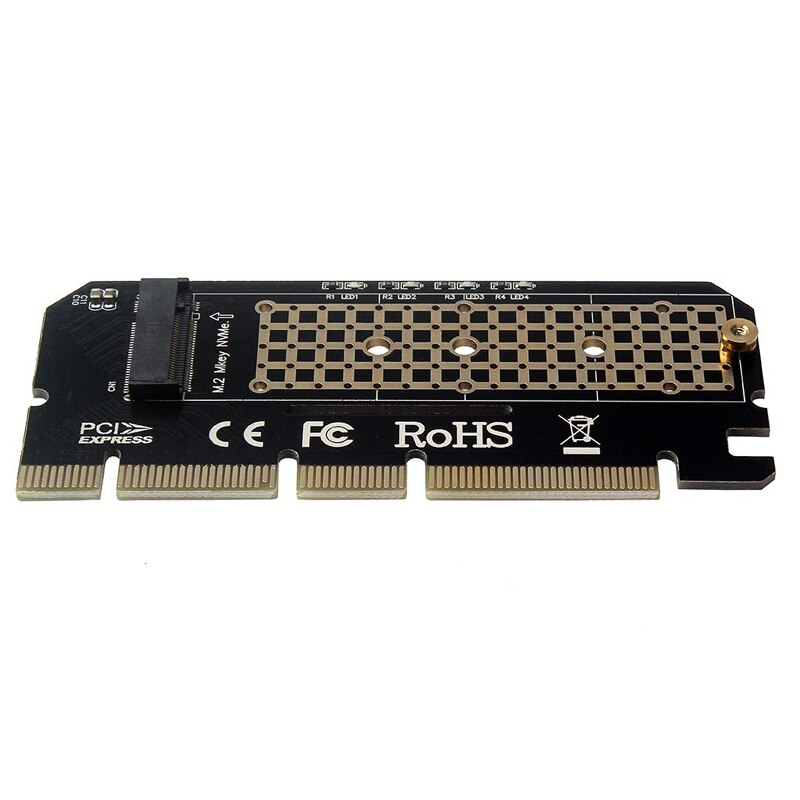

M.2 SSD NVME PCIe Gen3 X4 X8 X16 Adapter Card



Add a M.2 NVME SSD to your PC without M2 slot on the motherboard.

Converts one PCIe 3.0 3.0 x4 x8 x16 interface to M.2 (M Key) for NVMe/AHCI(PCI-e Channel) SSD installation, No driver is required.

Supports PCIE M.2 SSD (NVMe or AHCI PCI-e Channel, Key-M), PCIE 3.0 X4 32 Gbps bandwidth, and backward PCIe 2.0 16Gbps bandwidth

Apply to 2280/2260/2242 / 2230mm M+V413:V419.2 SSD.

Support TRIM and UASP.

Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard.( If install into PCI-e 2.0 slot, the transfer speed will be 16Gbps) Compatible with Windows/MAC/Linux, no driver required. (Note: Win7 and Windows Server 2008 R2 are not compatible with NVME SSD). Not supported SATA-based M.2 SSD.

Come with thermal pad,promote heat dissipation, keep adapter efficiently working

Compatible with all kinds of NVMe SSDs like

Samsung XP941, SM951(NVMe), 950, PM961, 960EVO, SM961, PM951, 960EVO

INTEL 600P.

Liteon T10. Kingston HyperX Predator M.2.

Plextor M6e Series M.2 SSD.





Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe and PCIe-AHCI.

Note:

1-Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only.

2-Win7 and Windows Server 2008 R2 are not compatible with NVME SSD.





1. Support M Key M.2 PCIe based NVME or AHCI SSD (form factors 2230, 2242, 2260,2280) only.

2. NOT support SATA-based M.2 AHCI SSD (Key B/B+M), please confirm your SSD before purchase.

3. Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only, Win7 and Windows Server 2008 R2 are NOT compatible with NVME SSD.

4.Please go to the SSD's website and find and install the NVMe driver for Windows/Linux OS if no drives appear in the Device/Disk manage
