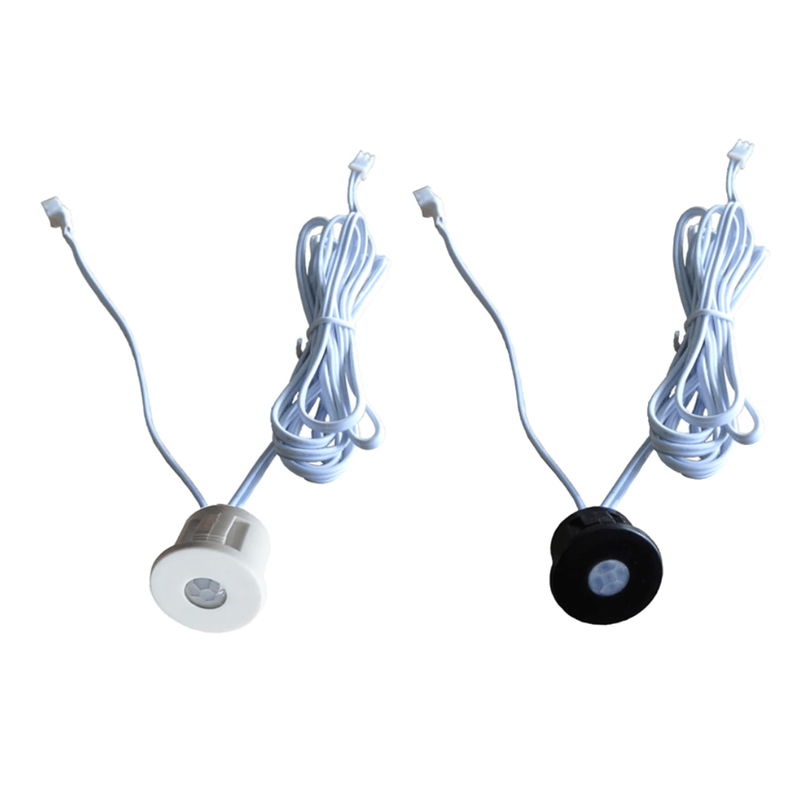

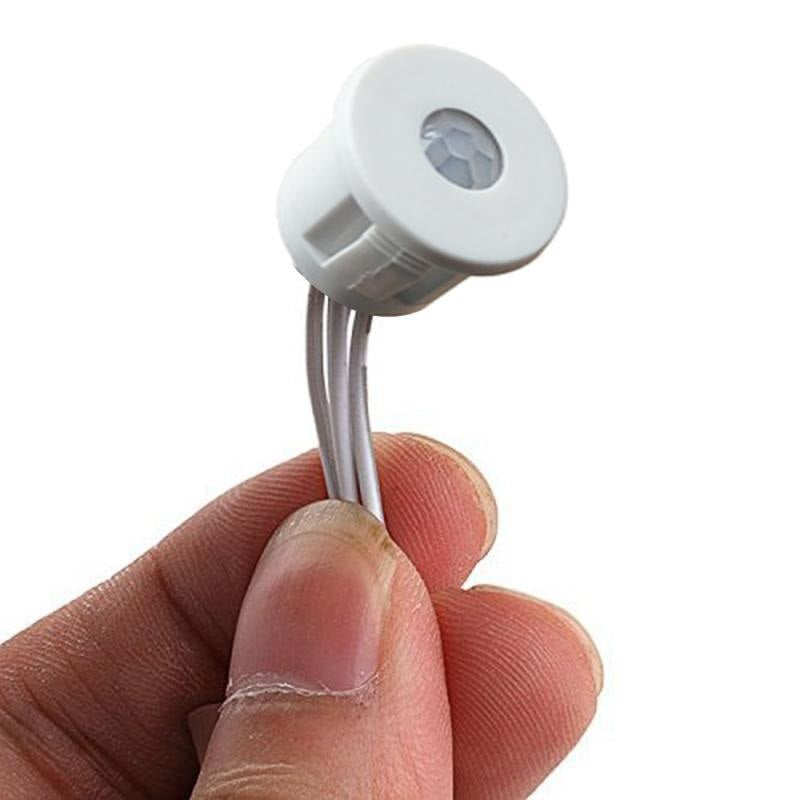

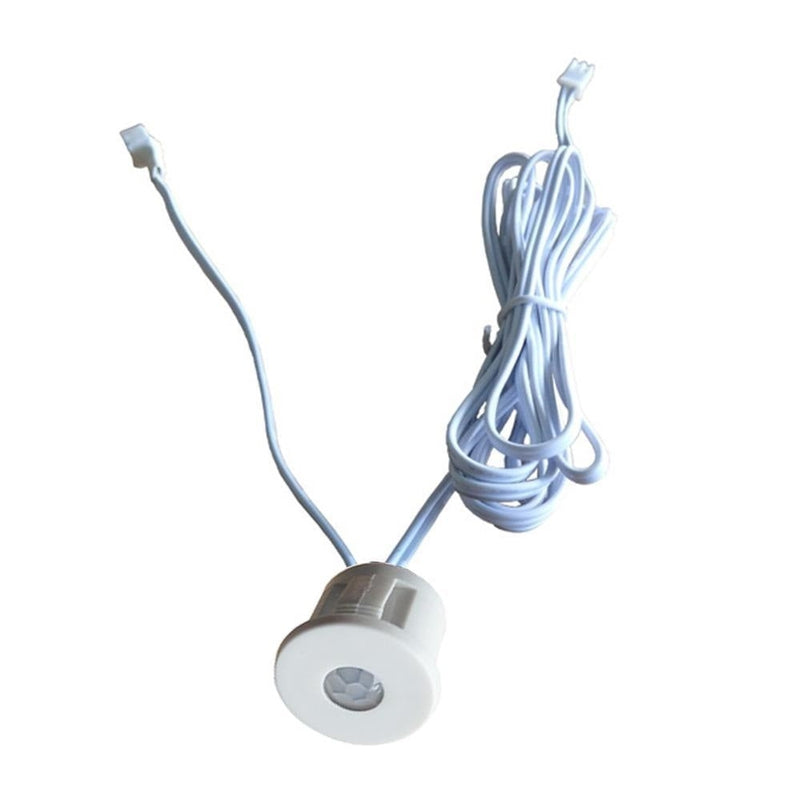

Motion Sensor Switch DC 12V PIR (Infrared Automatic On Off)

$16.99
$16.99
Sale Coming soon
Incl GST. Shipping calculated at checkout.
Colour

Shipping Policy

Shipping Policy

Return policy

Refund Policy Page

  • 100% brand new and high quality.
  • Delay shut down automatically in the dark, auto on/off with 15s delay time when you get in/out of the induction
  • 3m range
  • Suitable for LED Strip control
  • Application areas: for automatic lighting corridors, Led light strip, bathrooms, basements, warehouses, garages and other places, automatic ventilation exhaust fan and other electrical automatic control and other functions.
  • Temperature compensation: temperature compensation chip, reducing the impact sensing distance by the temperature.

Specification:

  • Model: LP-2016
  • Material: plastic
  • Color: white
  • Input lead: 140cm
  • Output lead: ~15cm
  • Sensor cut out diameter: 18mm
  • Sensor size: 49*42.5mm
  • Working voltage: DC12V
  • Working temp: -20 °C � +50 °C
  • Static current: < 30uA
  • Output current: 2A
  • Time delay: 15s(non-adjustable)
  • Induction way: passive
  • Induction angle: 120 °
  • Induction distance: 3m

Thanks for shopping with Sparts NZ

5096

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Christine Kuzman

Motion Sensor Switch DC 12V

m
michael o'donnell
low voltage motion sensor

was a very worthwhile exercise. the size of the unit was perfect for a stairway control for LED lighting. I had to purchase and assemble a relay system to convert to 230V operation but that wasnt a difficult task everything works great. would purchase again! mike
