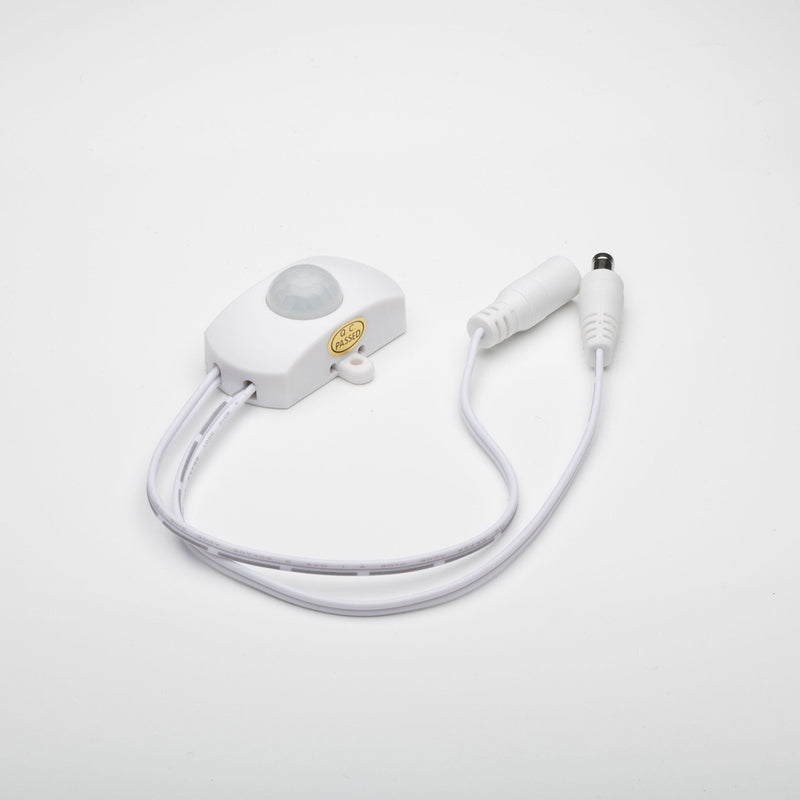

DC 12V PIR Motion Sensor Switch for LED Strips - 3m Range

Automate your LED strip lighting with this compact PIR motion sensor switch. Perfect for under-cabinet lighting, wardrobes, hallways, and anywhere you need hands-free control of your DC 12V LED strips.

Simply mount the sensor in your chosen location and connect your LED strip. The sensor automatically turns lights on when motion is detected within 3 metres, then switches off 15 seconds after you leave the detection zone. The built-in temperature compensation chip ensures reliable performance in varying conditions.

Ideal applications include:

• LED strip lighting in wardrobes, pantries and cupboards
• Under-cabinet kitchen lighting
• Hallway and corridor automation
• Bathroom and laundry lighting
• Garage and workshop areas
• Basement and storage spaces

• Working voltage: DC 12V
• Output current: 2A maximum
• Detection range: 3 metres
• Detection angle: 120°
• Time delay: 15 seconds (fixed)
• Sensor cut-out diameter: 18mm
• Sensor dimensions: 49 × 42.5mm
• Input lead length: 140cm
• Output lead length: 15cm (approx.)
• Working temperature: -20°C to +50°C
• Static current: <30μA
• Material: White plastic
• 6 month warranty
