• Read range of up to 10cm for RFID card and 5cm for Mifare card
• External LED control
• External Buzzer Control
• Indoor/Outdoor operation
• Solid Epoxy potted
• Waterproof IP65
• Reverse Polarity Protection
|

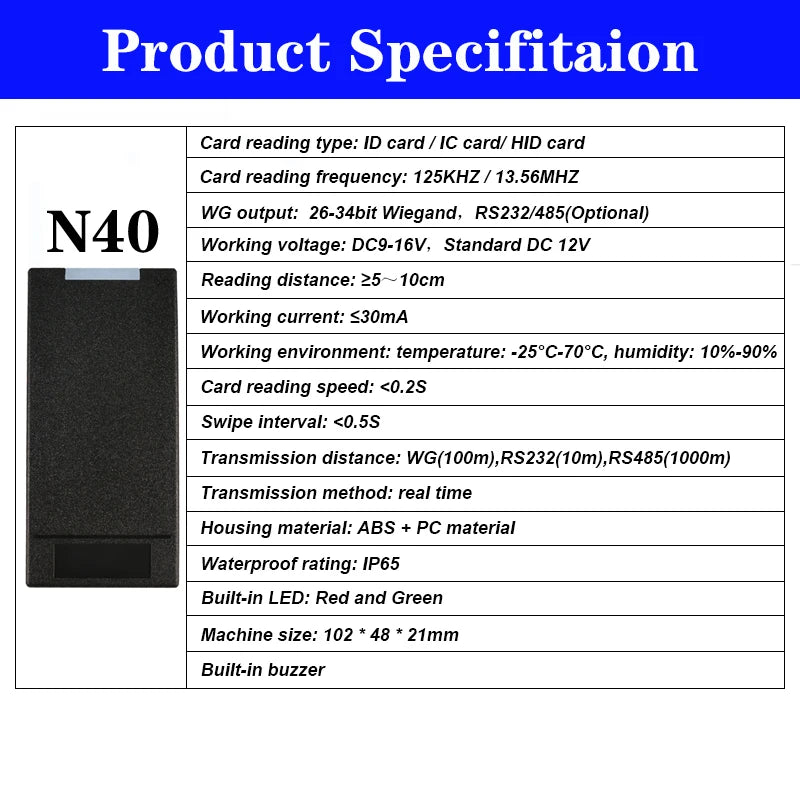

Output Interface |
Standard Wiegand26/34 |
|
Operating Frequency |
125KHZ/13.56MHZ |
|
Reader Card |
ID/IC/HID |
|
Transmitting Distance |
WG<100M |
|
Proximity Range |
xxx-E: Up to 10CM • xxx-M: Up to 5CM |
|
Power/Current |
DC 12V / Max.70mA |
|
Static Power Supply |
<70mA |
|
Temperature |
-10°C~65°C |
|
Relative Humidity |
10%-90% |
|
Recognition Speed |
<=200ms |
|
Input Port |
• External LED Control • External Buzzer Control |
|
Communication distance |
100m |
|
Communication way |
Real time |
|
LED |
Red and Green LEDs |
|
Beeper |
Yes |
|
Color |
Black Color |
|
Material |
ABS+PVC Material (Black Resin for Water-Proof Function) |
|
Waterproof |
IP65 |
|

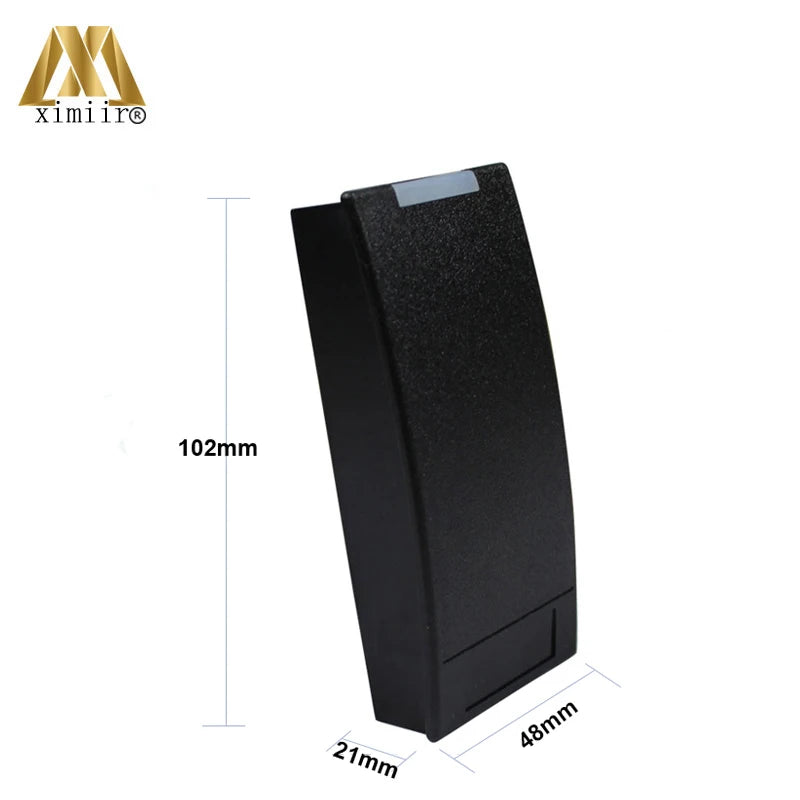

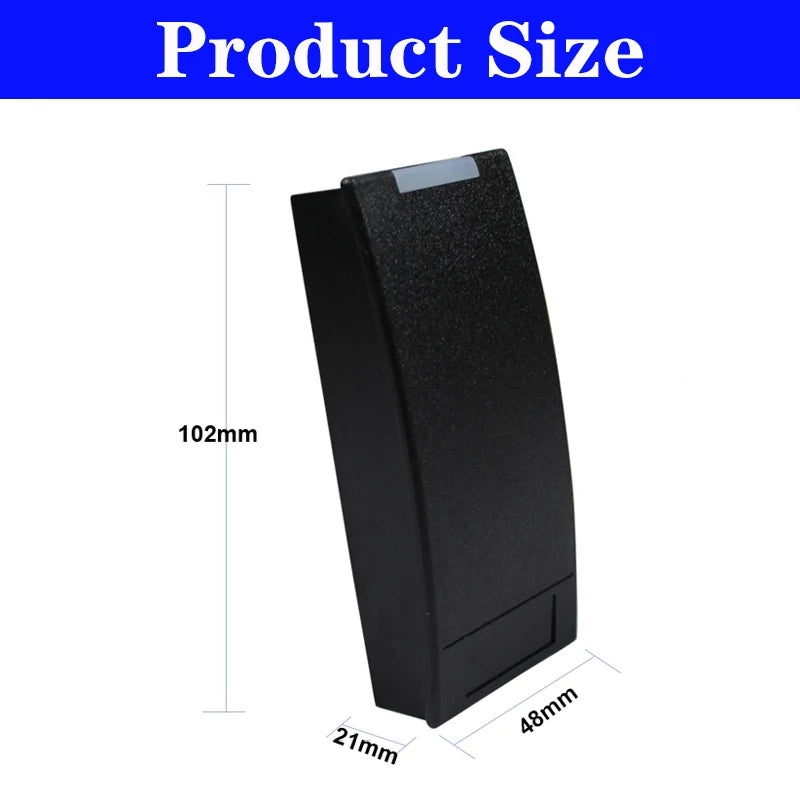

Dimension |
102x48x21(mm) |
|
Package |
100pcs per carton. Carton Size: 43.5*56*23(cm) |
