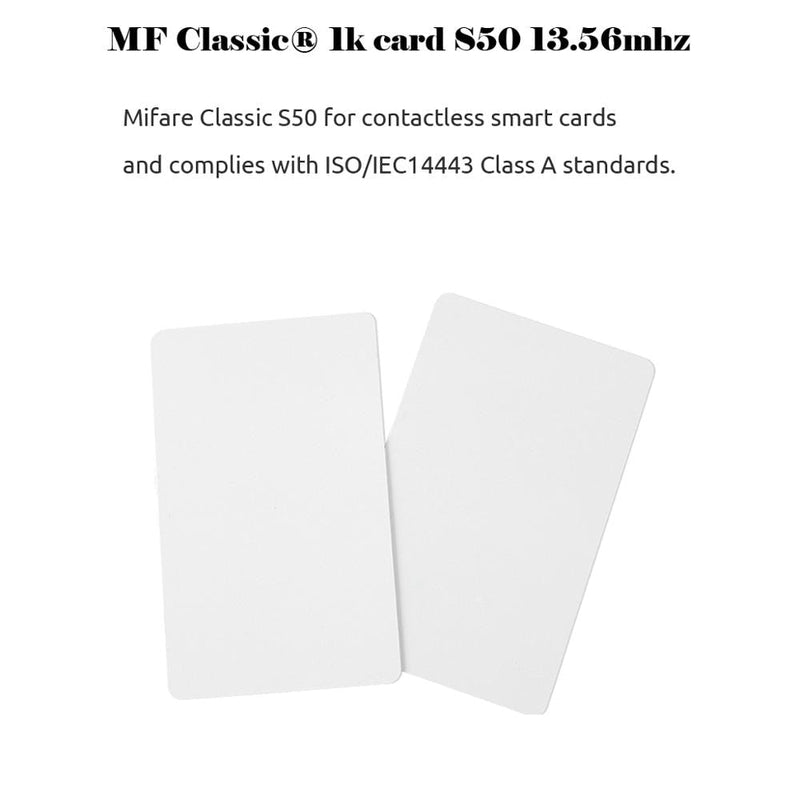

RFID KeyCard 13.56Mhz S50 ISO14443A

RFID Card 13.56Mhz IC Cards MF S50 Mifare Classic 1K M1

Note: Block 0 not writable, other Blocks are writable

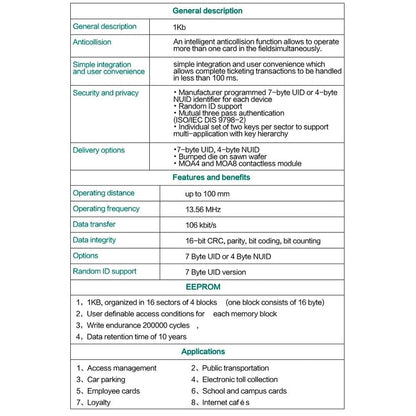

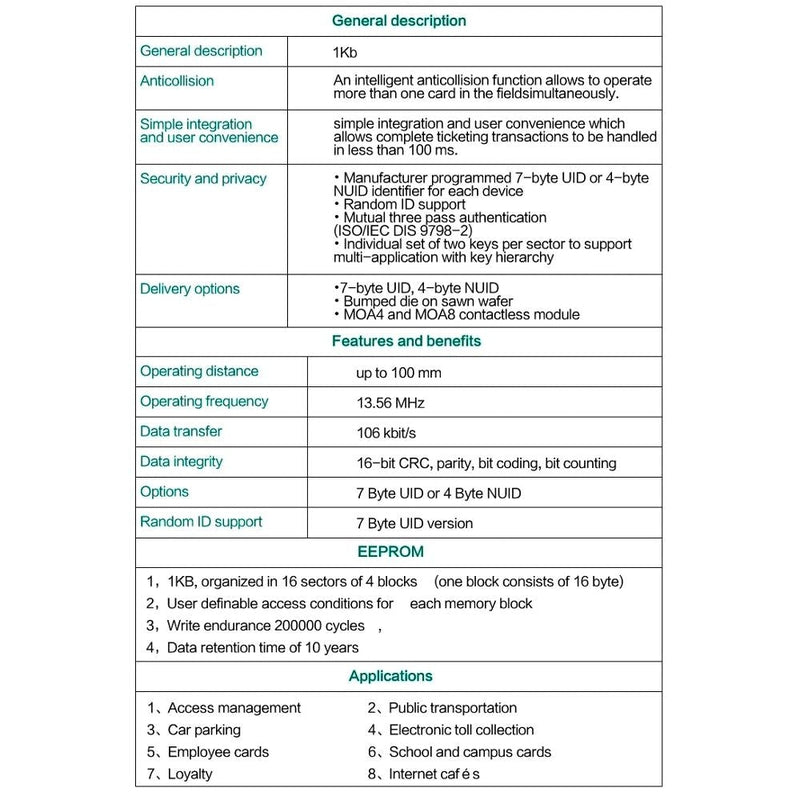

Features

• Contactless transmission of data and supply energy (no battery needed)
• Operating distance: Up to 100mm (depending on antenna geometry)
• Operating frequency: 13.56MHz
• Data transfer: 106 kbit/s
• Data integrity: 16 Bit CRC,parity,bit coding bit counting
• Anticollision
• Typical tickting transaction: <100 ms ( including backup management)

EEPROM

• 1Kbit, organized in 16 sectors, each district two passwords
• User definable access conditions for each memory block
• Data retention of 10 years.
• Write endurance 100 000 cycles

Security

• Individual key set per sector (per application) to support multi-application with key hierarchy
• Unique serial number for each device
• Transport key protects access to EEPROM on chip delivery

Key specifications

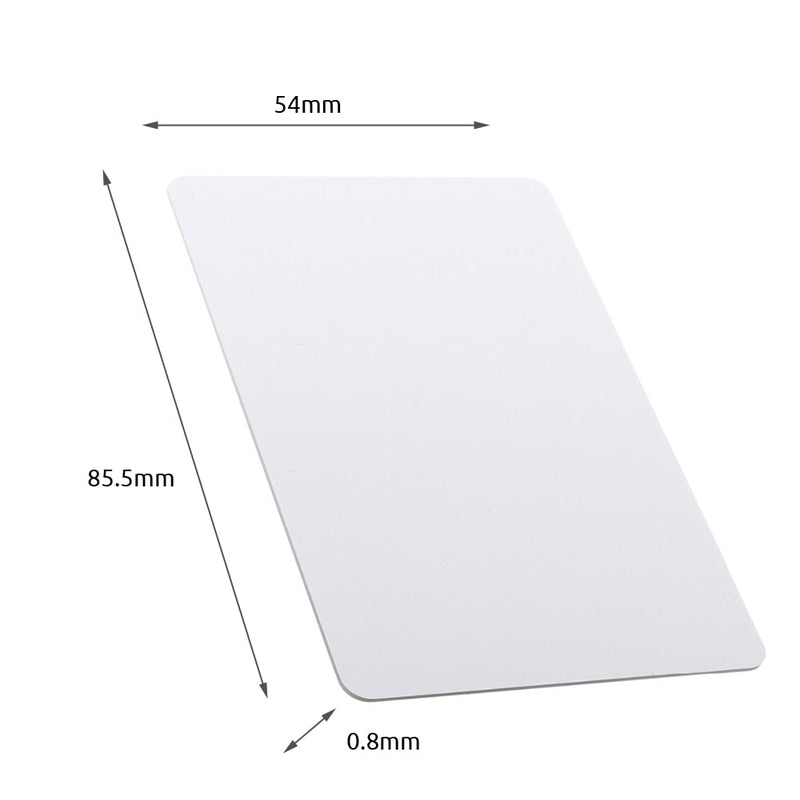

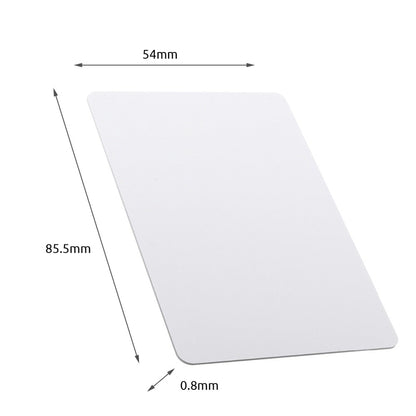

• Dimensions: 86 x 54mm
• Thickness: 0.88mm
• Material: PVC
• Operating temperature: -20 to +60°C
• Stockage temperature: -20 to +65°C

Use / Applications

• Public transportation
• Access control
• Event ticketing
• Gaming & identity
