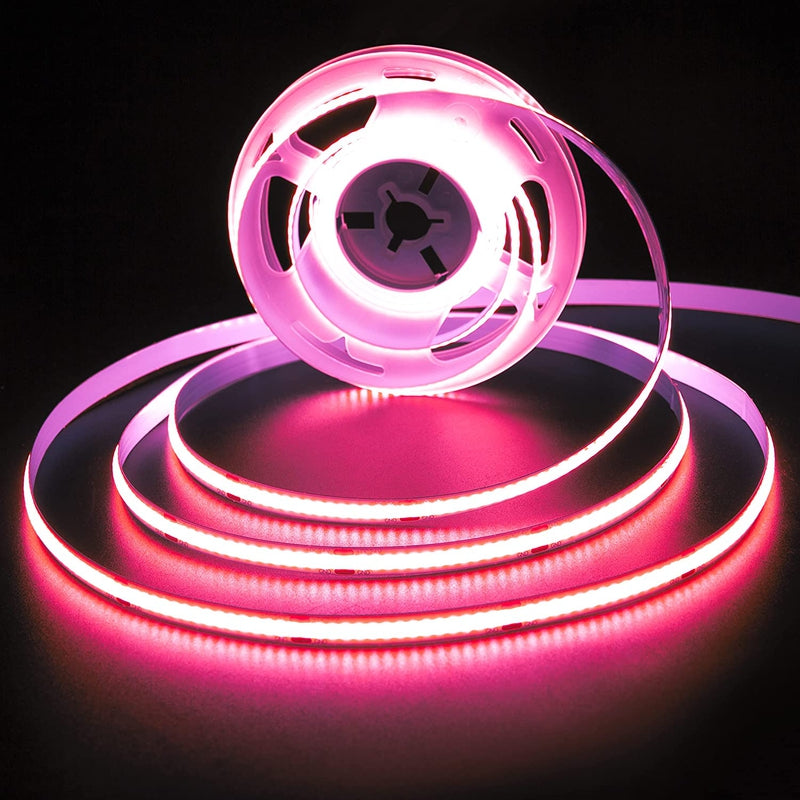

RGB LED COB solid light strip - 5m roll
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Return policy
Return policy
By far the best RGB strip you can get!
Super high quality COB LED strip sold per 5 meter roll, amazing looking effect as no diffuser required! Superior to other light strips with the solid light effect.
Supplied as 5m with RGB wires soldered on both ends. Can be cut down to size but requires basic soldering skill.
Available in both 480 and 840 LED per meter.
Requires 12V or 24V power supply not included.
COB LED Strip Specifications:
| Product Name: | COB LED Strip Light |
| Model: | COB12VX-RGB |
| LED Light Source: | COB |
| LED QTY/M: | 480 / 840 |
| Power: | 15W/m (75W per 5m roll) |
| Input Voltage: | 12V / 24V |
| CCT: | RGB |
| CRI: | >90 |
| LM/W: | 80-120LM/W |
| Lumen Output/Meter: | 420LM~1680LM |
| PCB Thickness: | 2oz |
| PCB Color: | White |
| Tape: | 3M 300LSE tape on the back |
| Length per reel: | 5M |
| Standard Connector: | 20AWG red/blue/green/black cable on the end |
| Length of Cuttable: | 10mm |
| PCB width: | 10mm |
| LED Strip Dimension: | (Width)*1.6mm(Height)*Length |
| Length: | 5000mm (16.4ft) per roll |
| Length of Connection Cable: | 150mm length |
| LED Beam Angle: | 180° |
| Work Temperature: | -20~60° |
| Working Humidity: | 40%-70%RH |
| Working Lifetime: | 30,000+ hours |
| Warranty: | 3 Years |
What’s the difference between COB LED and SMD LED?
The full name of COB is the Chip On Board: directly package the chip on the circuit board. See the following picture:
Superior to typical LED strips
COB LED Strip, 480leds/m DC12V, Length of Cuttable: 50mm, PCB Width: 5mm (8mm, 10mm for optional)
