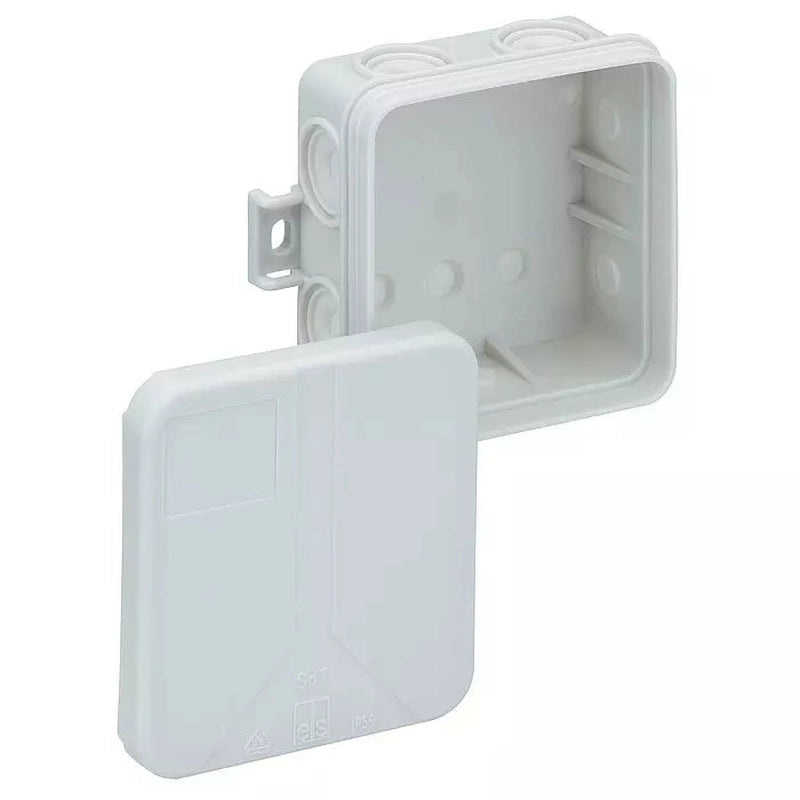

Vynco SD7 Junction Box 75x75x37mm IP55 Grey

Versatile weatherproof junction box ideal for electrical connections in both indoor and outdoor applications. The self-sealing membranes and IP55 rating ensure reliable protection against dust and water ingress.

Key Features:

• IP55 weatherproof protection for indoor and outdoor use
• Self-sealing insertion membranes for easy cable entry
• 10 cable entry points (3 rear, 7 side) with sealing range 8.2-12.5mm
• Internal fastening points for secure mounting
• VDE certified to DIN EN 60670-1/-22 standards
• Nominal cross-section 2.5mm², rated 400V AC

• Model: Vynco SD7-L
• Dimensions: 75 x 75 x 37mm
• Protection rating: IP55
• Colour: Grey
• Cable sealing range: 8.2-12.5mm diameter
• Voltage rating: 400V AC
• Cross-section: 2.5mm²
• Certification: VDE (DIN EN 60670-1/-22)
• Supplied without terminals
• 6 month warranty
